12 V Coreless Mini Motor

These are small, but very powerful coreless motors. They are running very slow at low voltage and are the Tramfabriek choice for all its locomotives. Works straight on 12V, a resistor is not necessary. The development of these unique motors have been initiated by the Tramfabriek.


DCC compatible. For more info and specific decoder settings, click here.

New M0.4 gears

for Minitrix!

General installation tips for the upgrade kits or your own custom project…

Click to read more…

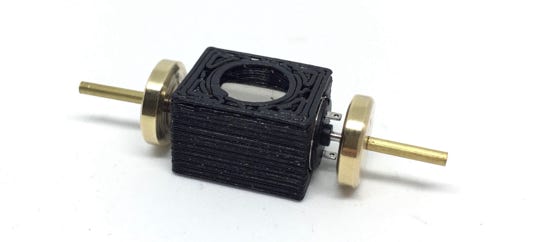

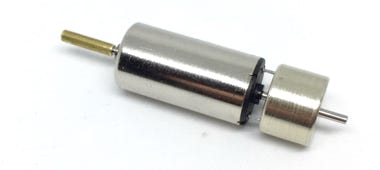

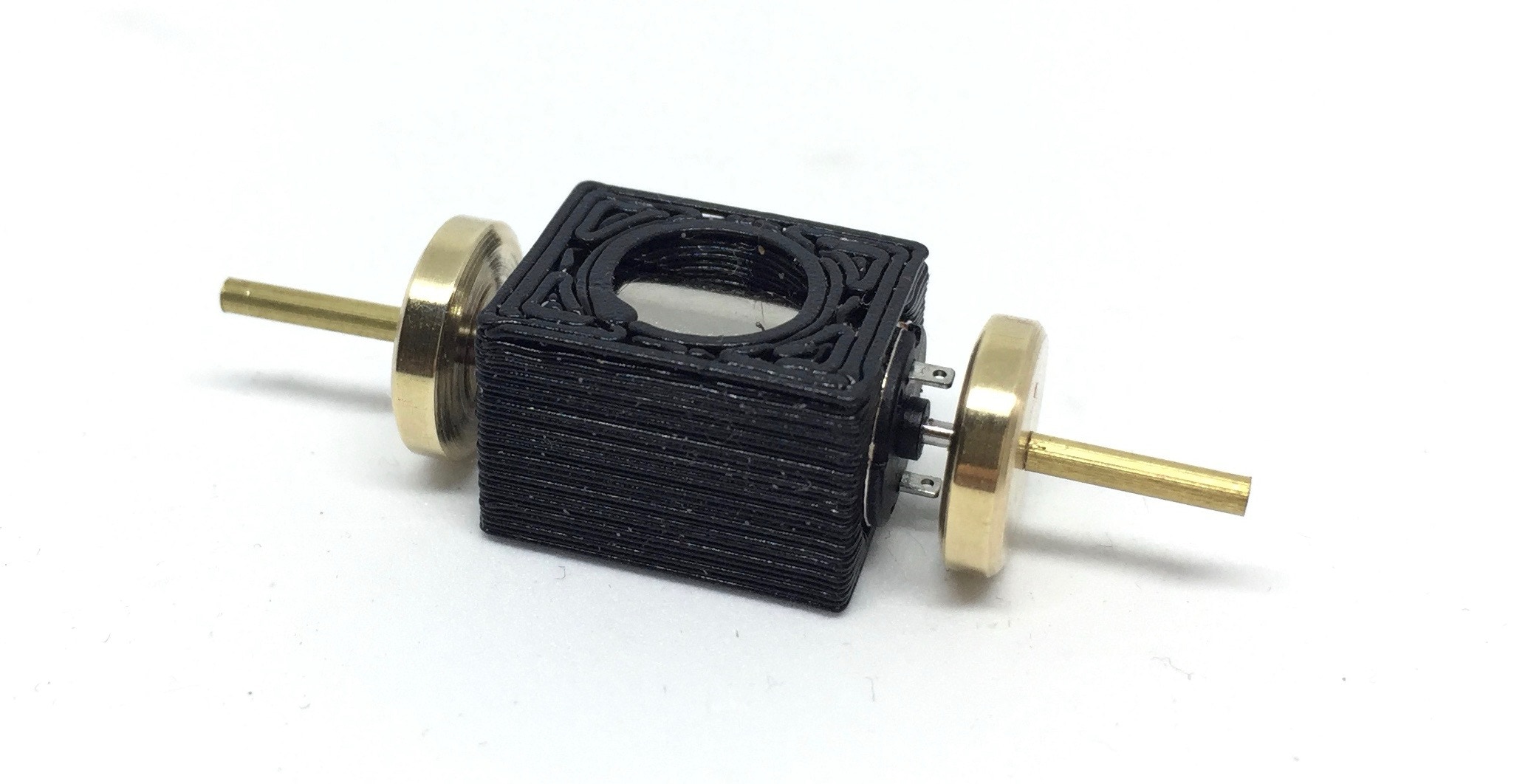

Assemble your own motor

0615

0716D

7 x 5 mm

0816S

CLICK FOR MOTOR SPECIFICATIONS: 0816 - 0716 - 0615

0816D

1015S

1015D

8 x 6 mm

10 x 3 mm

The Tramfabriek is the original initiator of these small 12V coreless motor. Thanks to the great Crowdfunders and the Tramfabriek, these motors are available for all now.

1020D

10 x 5 mm

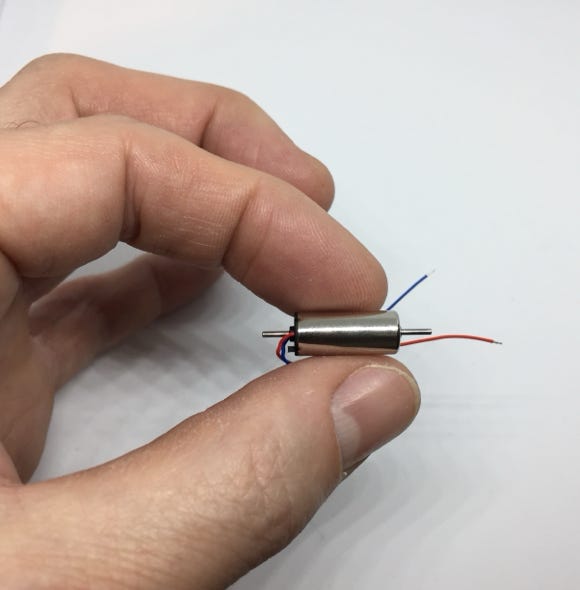

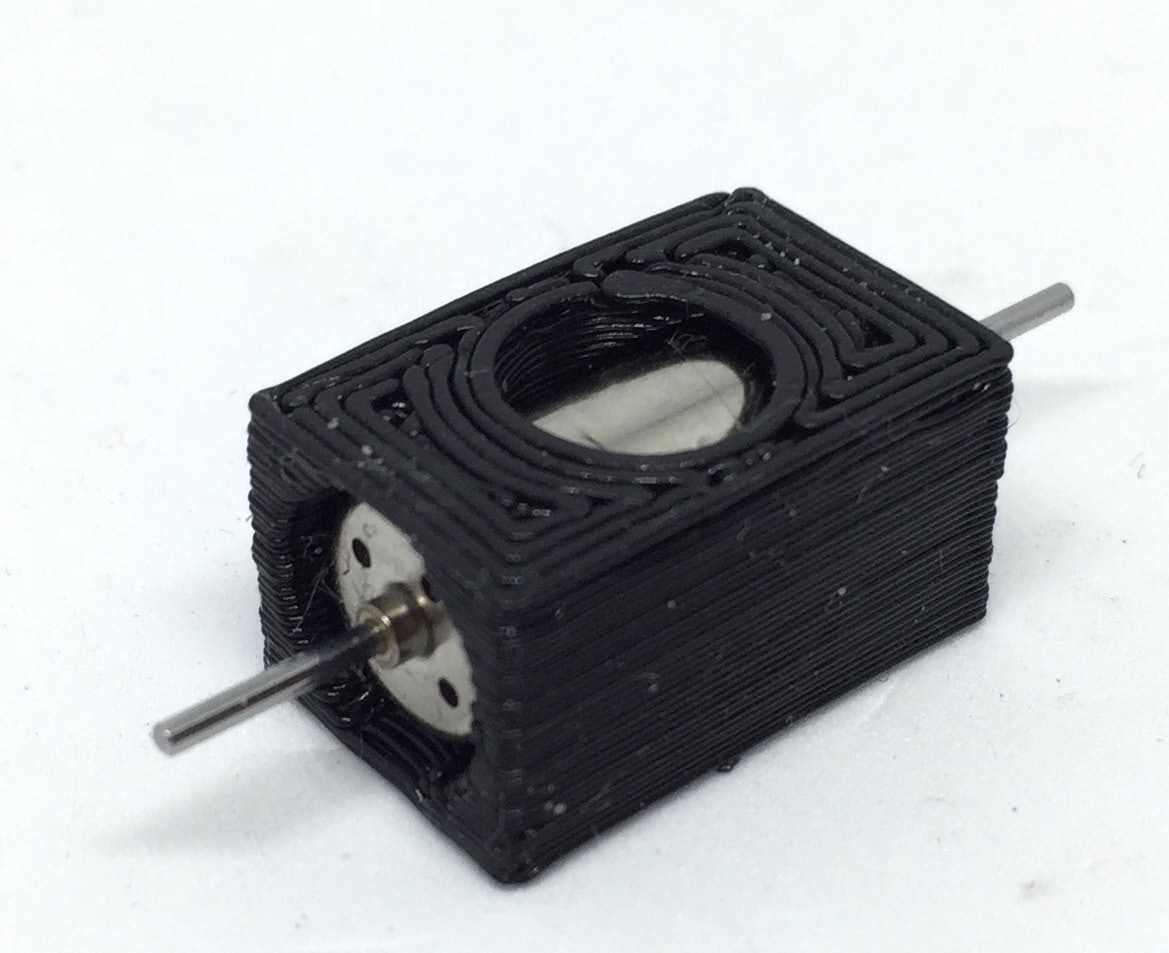

12V Coreless Mini Motor 10 x 15 mm

Powerful and smooth running

1015D

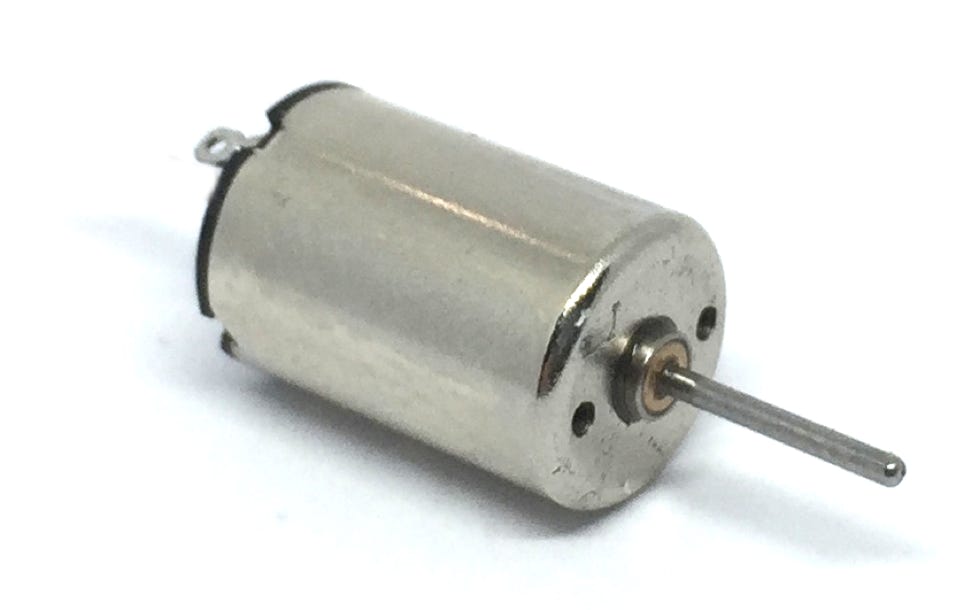

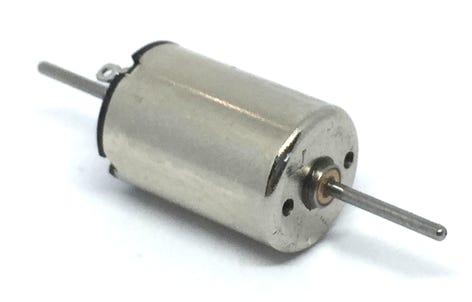

1015 - 12V Coreless Mini Motor 10 x 15mm

Available with one shaft (1015S) or on both sides a shaft (1015D), this surprisingly strong is an excellent choice for many N, H0e, H0m and even small H0 models. Glue it in your model with Epoxy glue or use the M1.2 mm screws holes. Unique product to the Tramfabriek.

1015S

Specifications 1015
Diameter casing: 10 mm - Length: 15 mm - Shaft diameter: 1 mm

1015S: Shaft length on one side: 7.0 mm

1015D: Shaft length on both sides: 7.0 mm

Screw mounting holes: M1.2, 6.5 mm apart

No load RPM at 12V: 19,000

Rated current: 100 mA

Stall torque: 28.6 g.cm

Powerful and smooth running

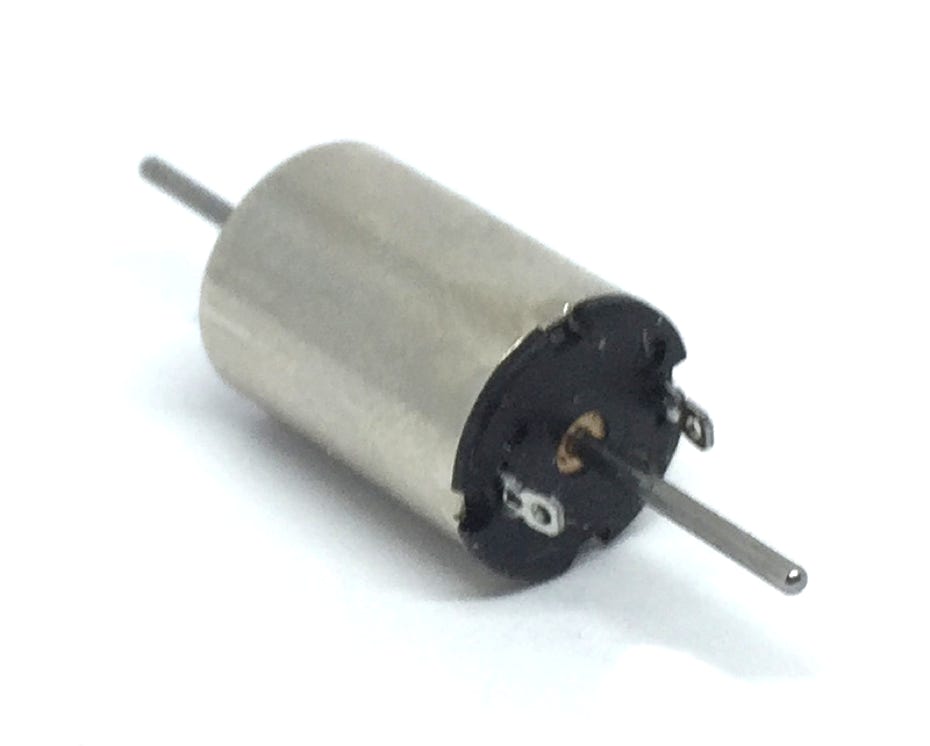

12V Coreless Mini Motor 10 x 20 mm

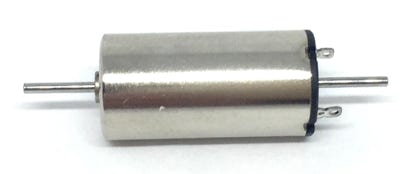

1020D - 12V Coreless Mini Motor 10 x 20mm (Two Shafts)

Diameter casing: 10 mm - Length: 20 mm - Shaft diameter: 1 mm

Shaft length front: 7.0 mm - Shaft length rear: 7.4 mm

CHECK OUT THE

SPECIAL DEALS

HERE

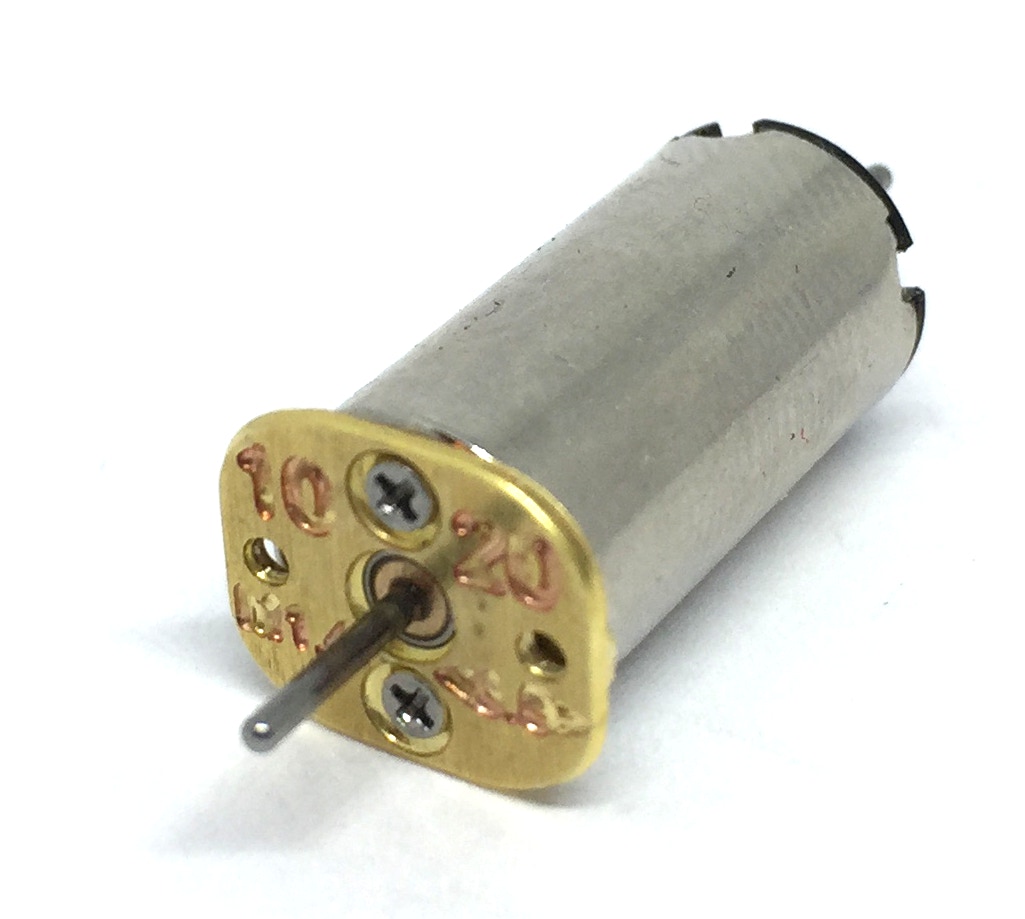

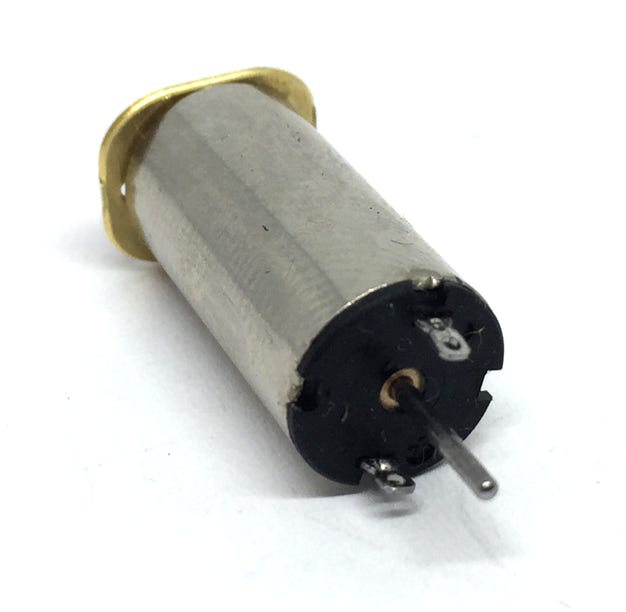

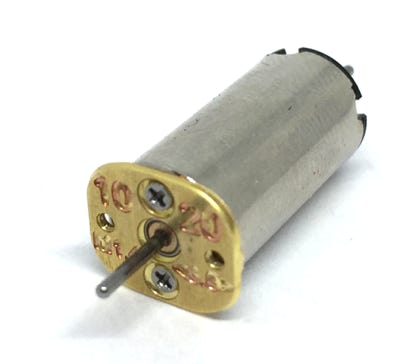

Mashima 1020 replacement

Another pioneering feature by the Tramfabriek is a bracket for the 10 x 20 mm motor, to match the Mashima 1020 motor mounting holes.

Screws (M1.2) to mount bracket to motor are included. The M1.4 screws to mount to your chassis are not included, as the length could be different for each application.

Centre mounting holes are 8.5 mm apart, depth is 1 mm.

12V Coreless Mini Motor 8 x 16mm

Specifications 1020D:

Outer diameter: 10.0 mm

Length: 19.90 mm

Voltage: 12V

Shaft diameter: 1.0 mm

Shaft length non-contacts side: 7.0 mm

Shaft length contacts side: 7.4 mm

Mounting hole: M1.2

No load RPM at 12V: 14,000

Rated current: 60 mA

Stall torque: 32 g.cm

Powerful and smooth running

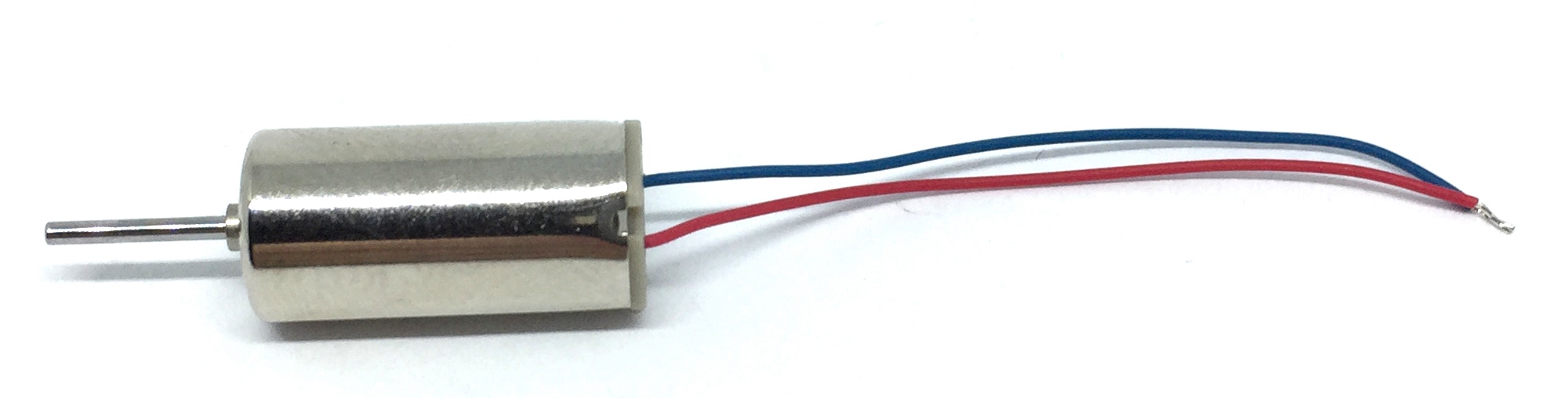

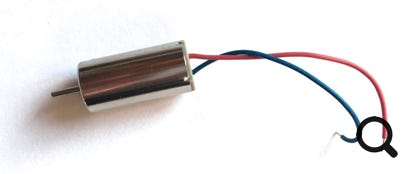

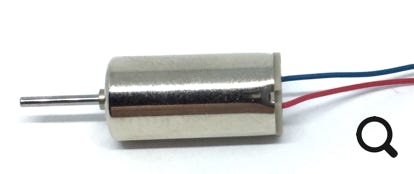

0816S - 12V Coreless Mini Motor 8 x 16mm (One Shaft)

Diameter casing: 8 mm - Length: 16 mm - Shaft diameter: 1 mm

Shaft length front: 5 mm. Running at 13,000 rpm (no load).

0816SL - 12V Coreless Mini Motor 8 x 16mm (One longer Shaft)

Longer shaft than 0816S Running at 13,000 rpm (no load). With two screw mounting holes for M1.2mm screws (screws not included).

Diameter casing: 8 mm - Length: 16 mm - Shaft diameter: 1 mm

Shaft length front: 7 mm. With mounting bracket available here.

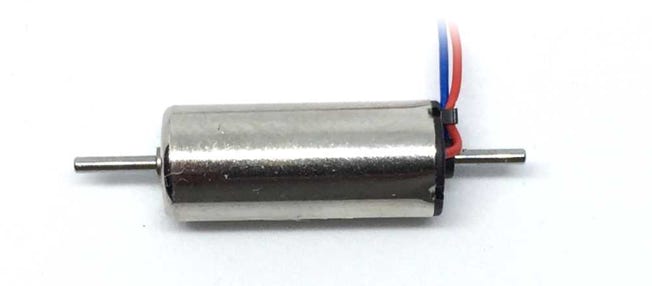

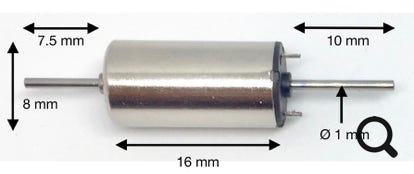

0816D - 12V Coreless Mini Motor 8 x 16mm (Dual Shafts)

Running at 13,500 rpm (no load). With two screw mounting holes for M1.2mm screws (screws not included).

Diameter casing: 8 mm - Length: 16 mm - Shaft diameter: 1 mm

Shaft length front: 10 mm - Shaft length rear: 7.5 mm

0816D18 - 12V Coreless Mini Motor 8 x 16mm (Dual Shafts)

Faster motor than the above one at 17,800 rpm (no load). With two screw mounting holes for M1.2mm screws (screws not included).

Diameter casing: 8 mm - Length: 16 mm - Shaft diameter: 1 mm

Shaft length front: 10 mm - Shaft length rear: 7.5 mm

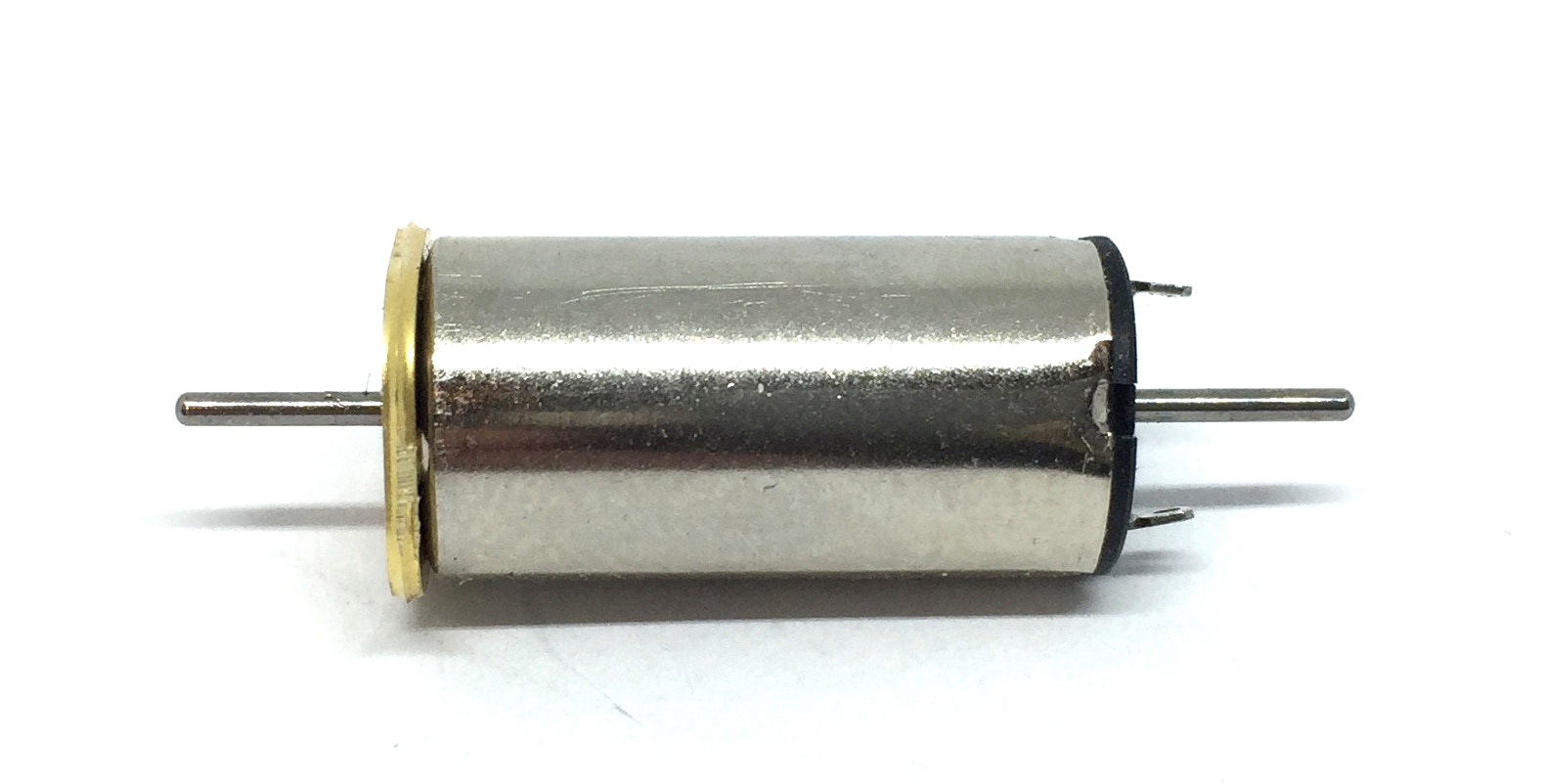

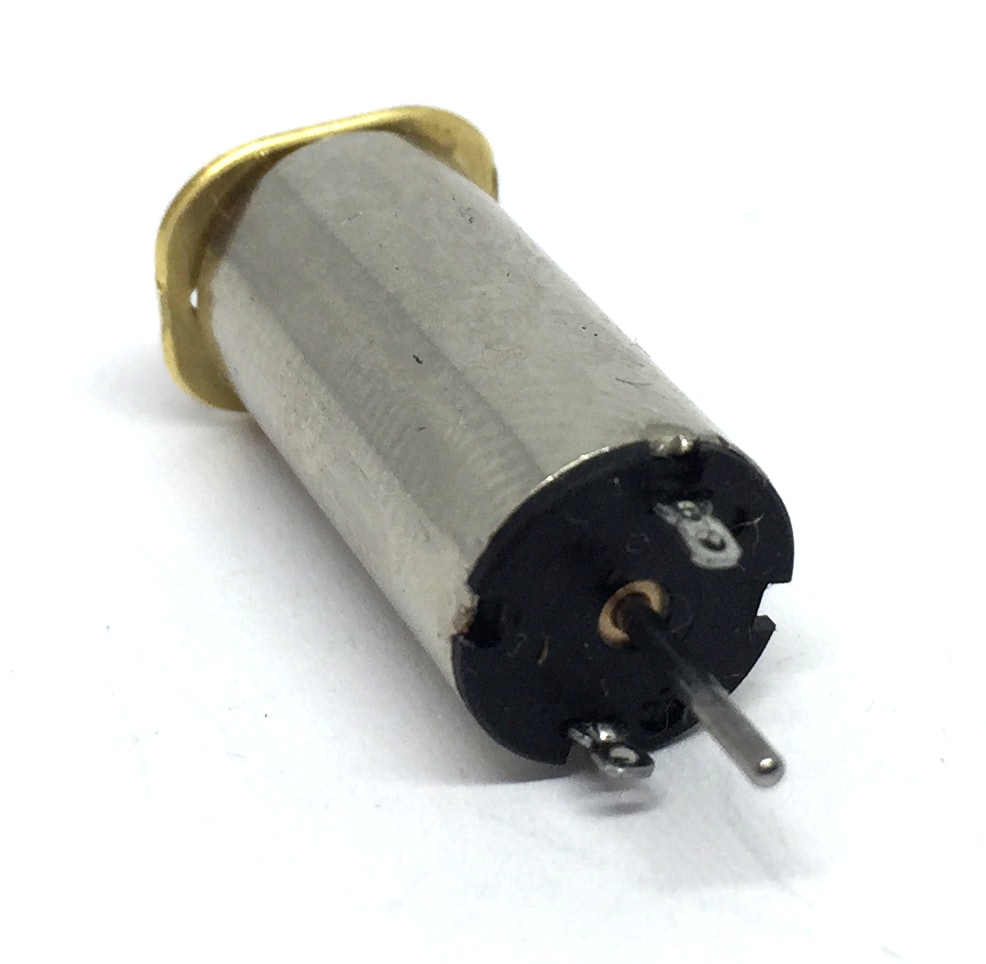

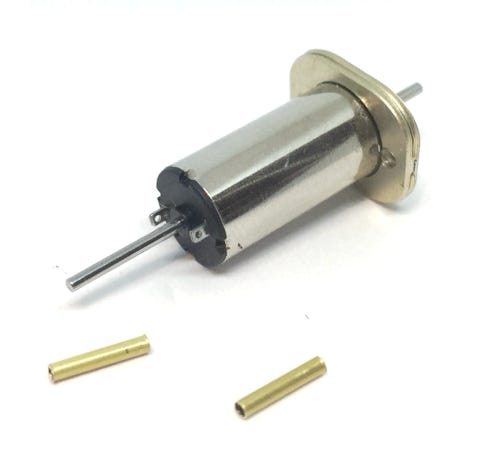

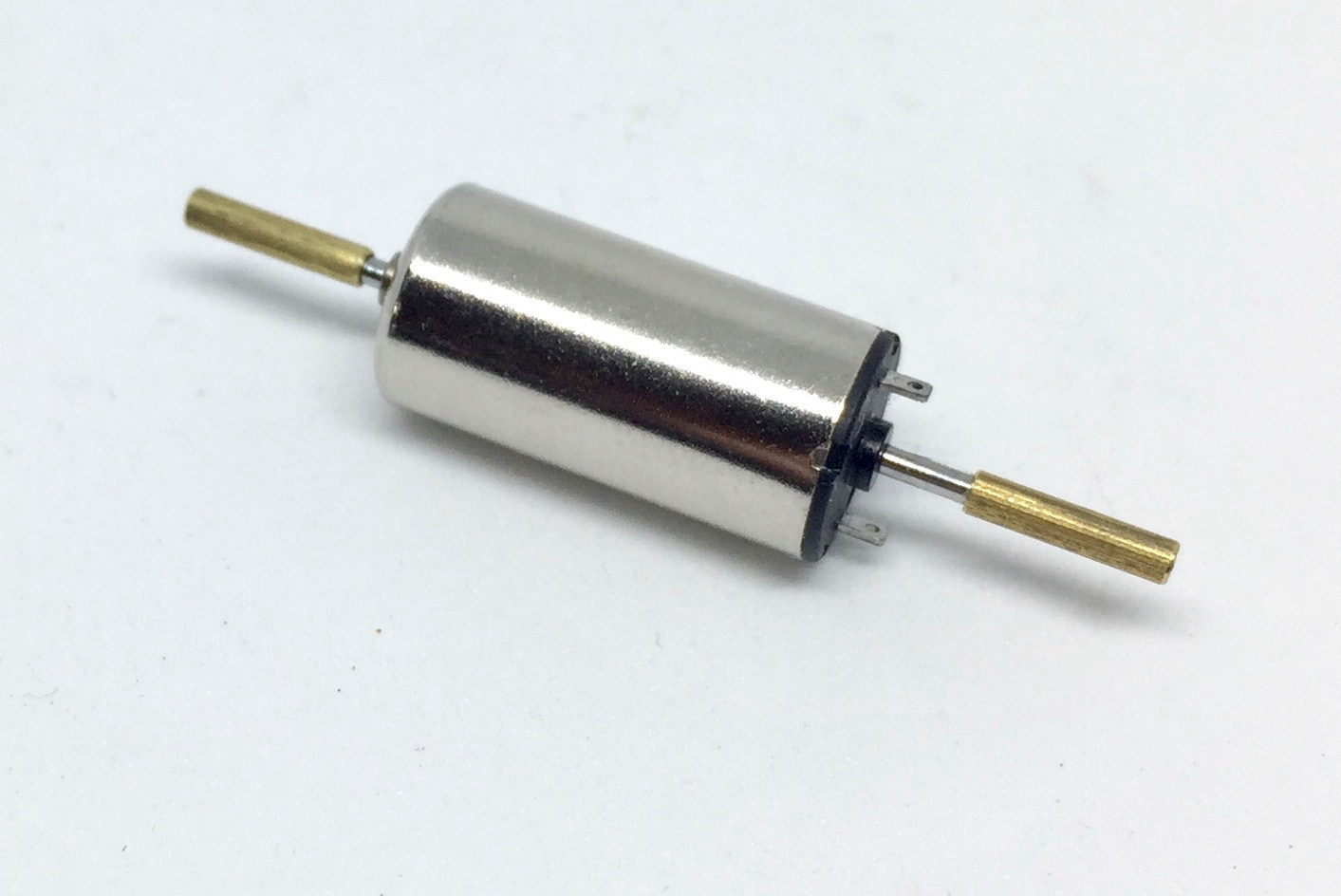

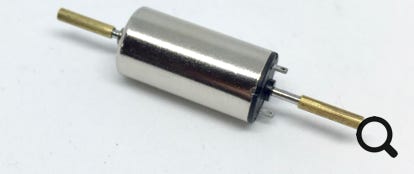

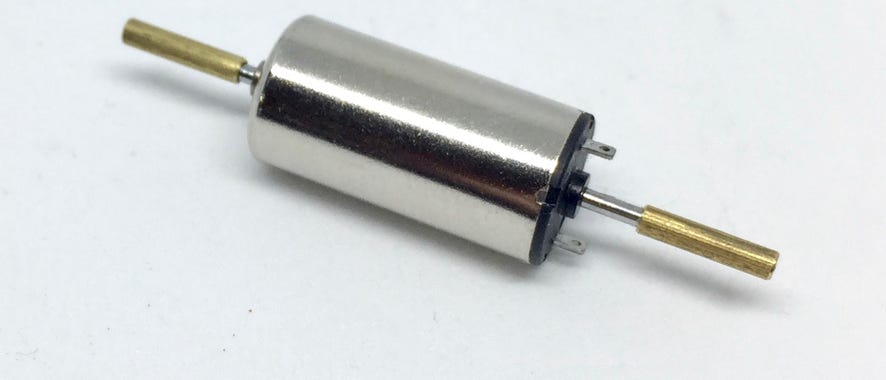

0816DB - 12V Coreless Mini Motor 8 x 16mm (Dual Shafts)

With 2x brass shaft adapters to Ø 1.5 mm and mounting bracket for M1.6 mm screws (not included). Screws to mount bracket to motor are included, though. Centre mounting holes are 9.5 mm apart.

Specifications as 0816D and 0816D18

Specifications 0816S:

Diameter casing: 8 mm

Length: 16 mm

Shaft diameter: 1 mm

Shaft length: 5 mm

Min RPM: 400

No load speed: 13,000

No load current: 6 mA

Rated speed: 11,500

Rated current: 30 mA

Rated torque: 3g.cm

Stall torque: 14.5g.cm

Stall current: 0.21 A

Specifications 0816D:

Diameter casing: 8 mm

Length: 16 mm

Shaft diameter: 1 mm

Shaft length front: 10 mm

Shaft length back: 7.5 mm

Min RPM: 400

No load speed: 13,500

No load current: 5 mA

Rated speed: 12,300

Rated current: 30 mA

Rated torque: 3g.cm

Stall torque: 14.5g.cm

Stall current: 0.15 A

Specifications 0816D18

Diameter casing: 8 mm

Length: 16 mm

Shaft diameter: 1 mm

Shaft length front: 10 mm

Shaft length back: 7.5 mm

Min RPM: 500

No load speed: 17,800

No load current: 5 mA

Rated speed: 14,500

Rated current: 95 mA

Rated torque: 5g.cm

Stall torque: 24.3g.cm

Stall current: 0.4 A

Powerful and smooth running

12V Coreless Mini Motor 7 x 16mm

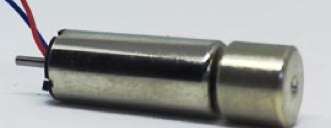

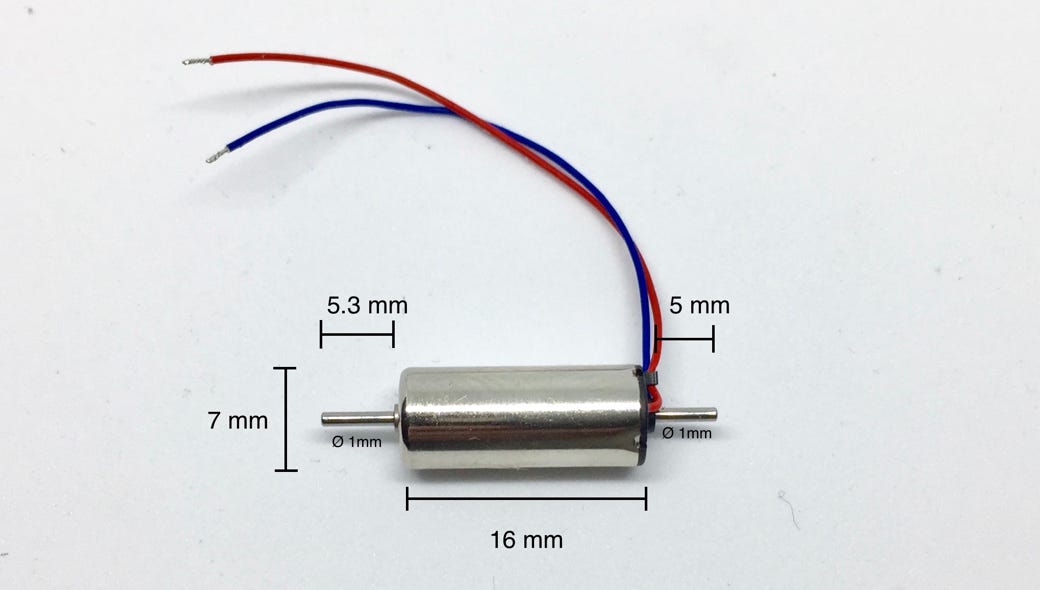

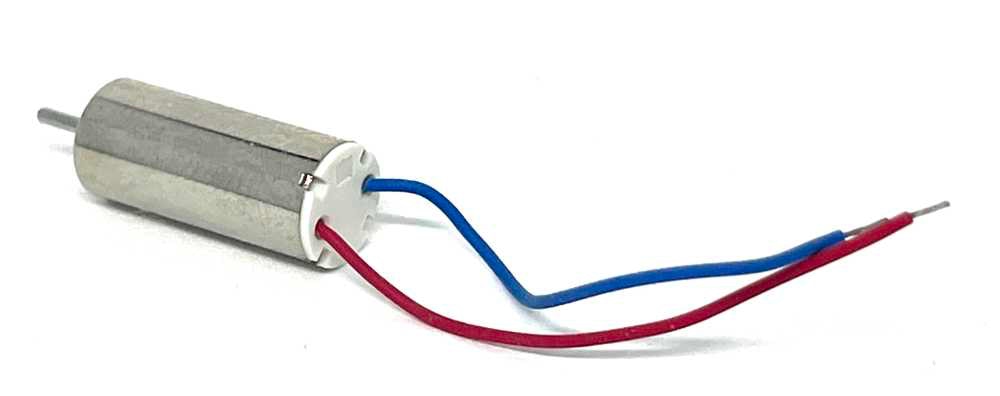

0716D - 12V Coreless Mini Motor 7 x 16mm (Dual Shaft)

Diameter casing: 7 mm - Length: 16 mm - Shaft diameter: 1 mm

Shaft length front: 5.3 mm - Shaft length rear: 5.0 mm

Rated speed: 11,000 rpm - Rated current: 40 mA

Specifications 0716D


Diameter casing: 7 mm

Length: 16 mm

Shaft diameter: 1 mm

Shaft length front: 5.3 mm

Shaft length back: 5.0 mm

No load speed: 16,000 rpm

No load current: 10 mA

Rated speed: 11,000 rpm

Rated current: 40 mA

Rated torque: 2.5 g.cm

Stall torque: 6 g.cm

Stall current: 0.1 A

Powerful and smooth running

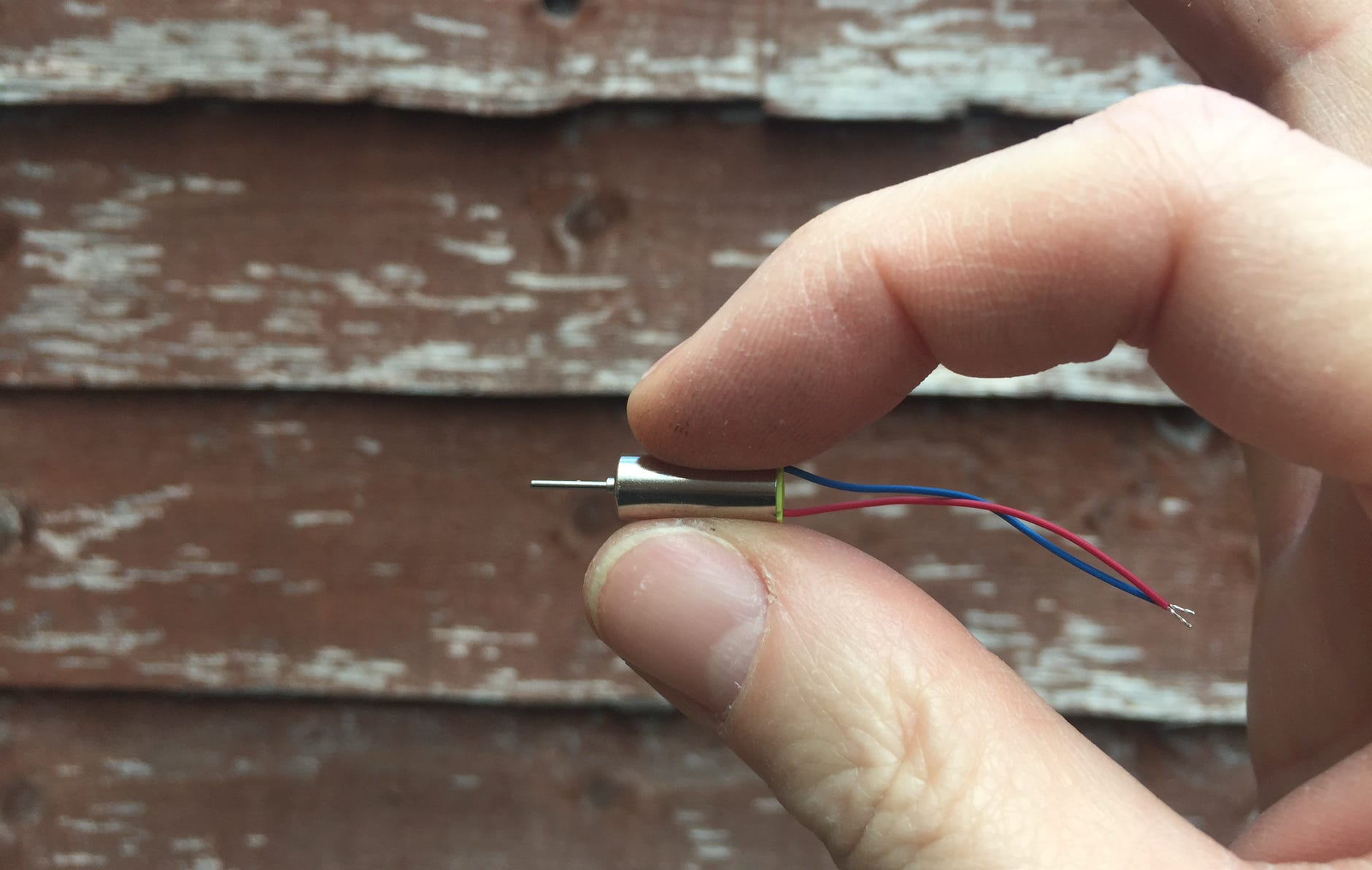

12V Coreless Mini Motor 6 x 15mm

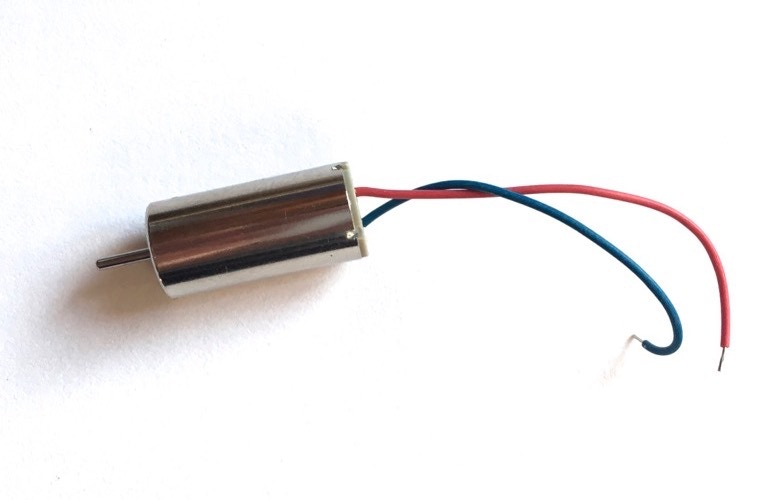

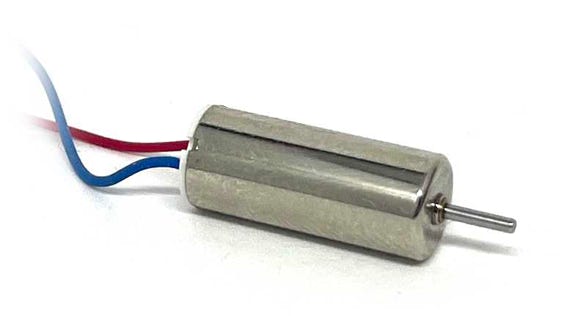

0615S - 12V Coreless Mini Motor 6 x 15mm (Single Shaft)

Diameter casing: 6 mm - Length: 15 mm - Axle diameter: 0.8 mm

Shaft length front: 7 mm

Rated speed: 11,000 rpm - Rated current: 40 mA

Specifications 0615S

Diameter casing: 6 mm

Length casing: 15 mm

Axle diameter: 0.8 mm

Axle length: 7 mm

No load speed: 21800 ±10%

Noload current: 15mA Max

Stall Current: 110mA max

Stall torque: 4.9g.cm

Terminal resistance 113±5%

Another original Tramfabriek initiated product brought to the world.

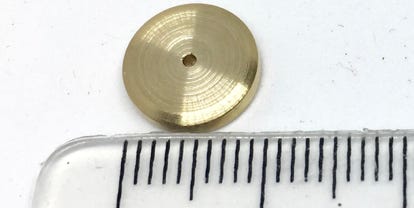

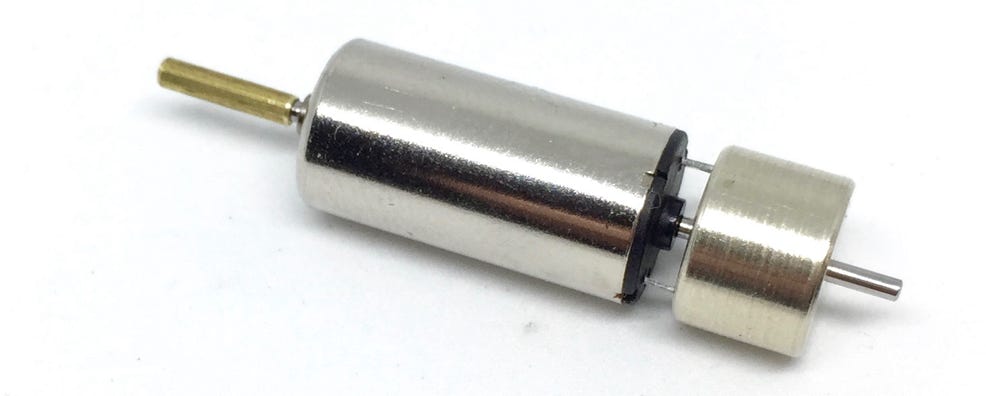

Flywheels

All flywheels are all precision turned and can be easily pressed on by hand. Before leaving the factory, we test every flywheel for accurate fitting. Most of the time they stay in place after a push fit, though it might be possible that it ‘ll need a tiny drop of glue (superglue or Loctite) to secure it.

FLY075 Flywheel 7 mm x 5 mm

Precision machined flywheel, brass.

Outer diameter: 7 mm - Length: 5 mm - Hole diameter: 1 mm

FLY086 Flywheel 8 mm x 6 mm

Precision machined flywheel, brass.

Outer diameter: 8 mm - Length: 6 mm - Hole diameter: 1 mm

FLY103 Flywheel 10 mm x 2.5 mm

Precision machined flywheel, brass.

Outer diameter: 10 mm - thickness: 2.5 mm - Hole diameter: 1 mm

FLY103 Flywheel 10 mm x 3 mm

Precision machined flywheel, brass.

Outer diameter: 10 mm - thickness: 3.0 mm - Hole diameter: 1 mm

FLY105 Flywheel 10 mm x 5 mm

Precision machined flywheel, brass.

Outer diameter: 10 mm - thickness: 5 mm - Hole diameter: 1 mm

FLY124 Flywheel 12 mm x 4.2 mm

Precision machined flywheel, brass.

Outer diameter: 12 mm - Thickness: 4.2 mm - Hole diameter: 1.0 mm

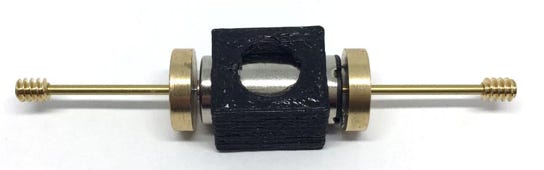

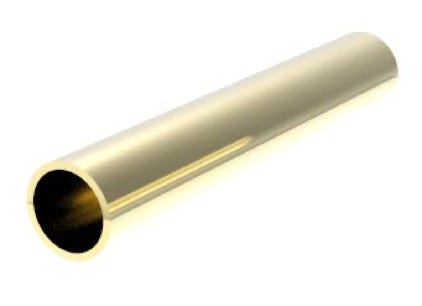

Drive shafts and adapters

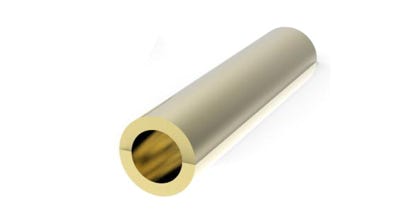

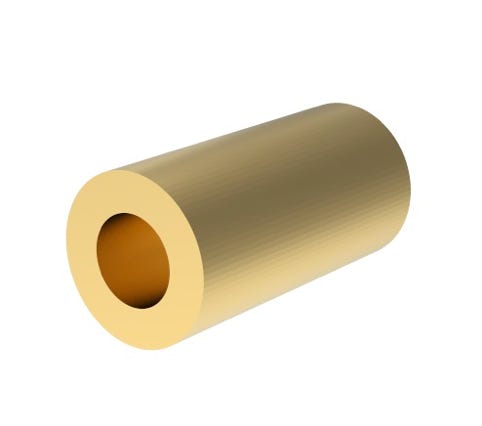

AD0815 - Brass adapters for worms and gears with ID 0.8 mm

Outer diameter: 1.5 mm

Inner diameter: 0.8 mm

Kies lengte - Choose your length

(no motor or flywheels included!)

AD1012 - Brass adapters for worms and gears with OD 1.2 mm

Outer diameter: 1.2 mm

Inner diameter: 1.0 mm

Kies lengte - Choose your length

(no motor or flywheels included!)

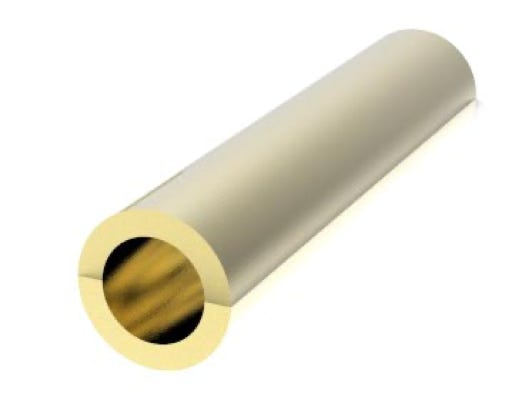

AD1015 - Brass adapters for worms and gears with OD 1.5 mm

Outer diameter: 1.5 mm

Inner diameter: 1.0 mm

Kies lengte - Choose your length

(no motor or flywheels included!)

AD1018 - Brass adapters for worms and gears with inner diameter of 1 mm

Outer diameter: 1.8 mm

Inner diameter: 1.0 mm

Length: 5.0 mm

(no motor or flywheels included!)

AD1020 - Brass adapters for worms and gears with inner diameter of 1 mm

Outer diameter: 2.0 mm

Inner diameter: 1.0 mm

Length: 5.0 mm

(no motor or flywheels included!)

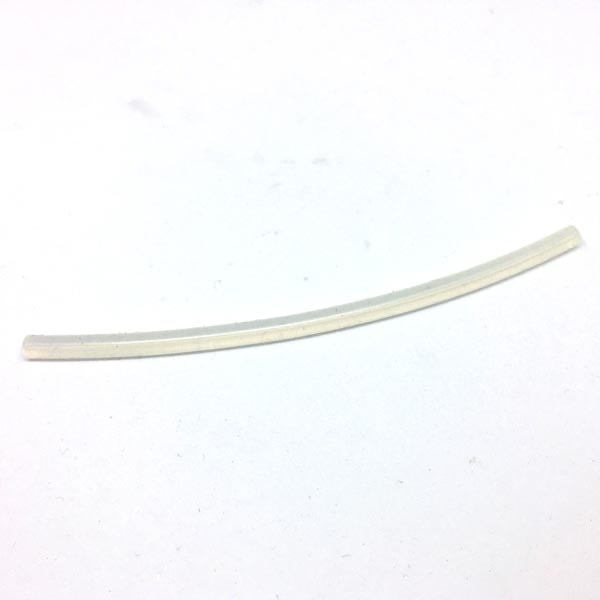

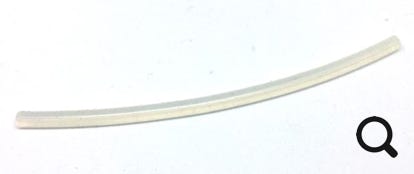

SIL04 - Silicon tube Ø 4 mm, length 10 cm

Outer diameter: 4mm, inner diameter 0.8 mm

(Silicone tube only, no motor included)

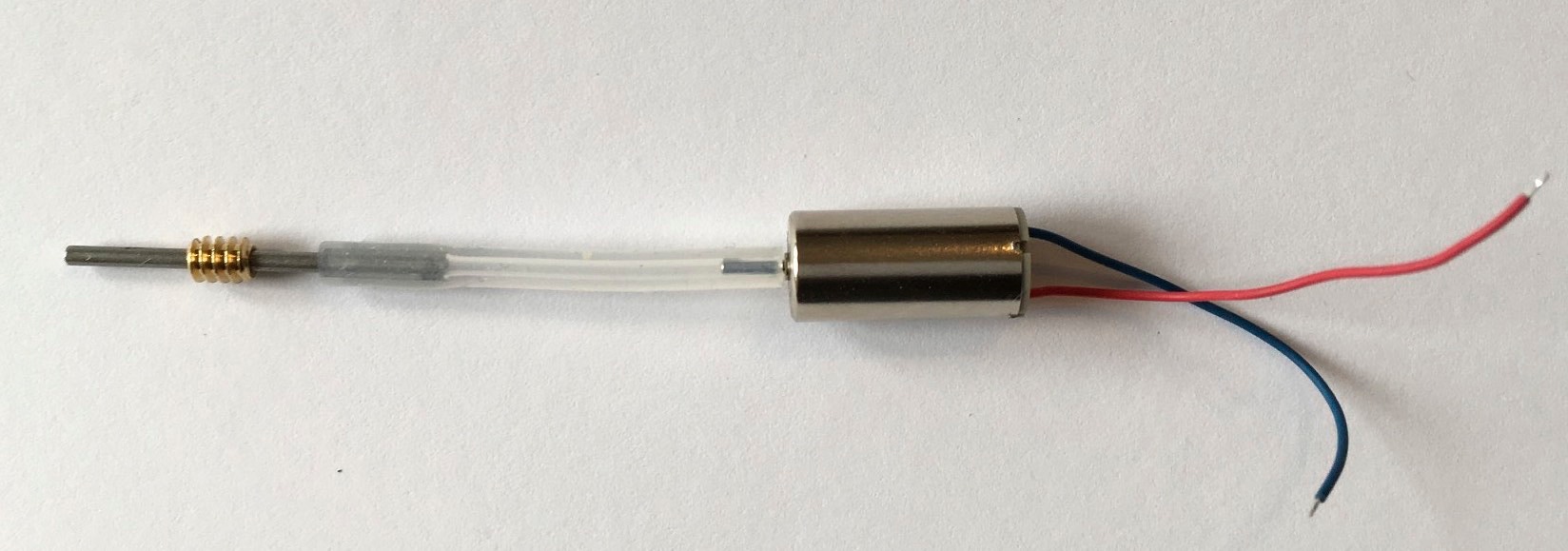

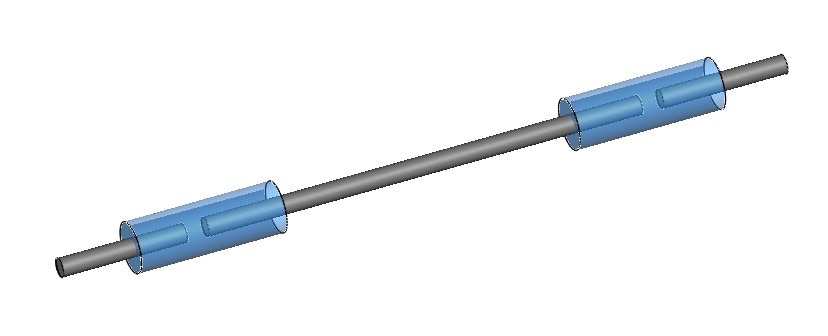

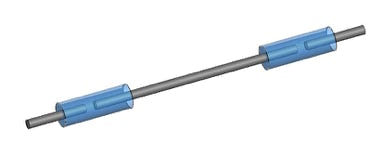

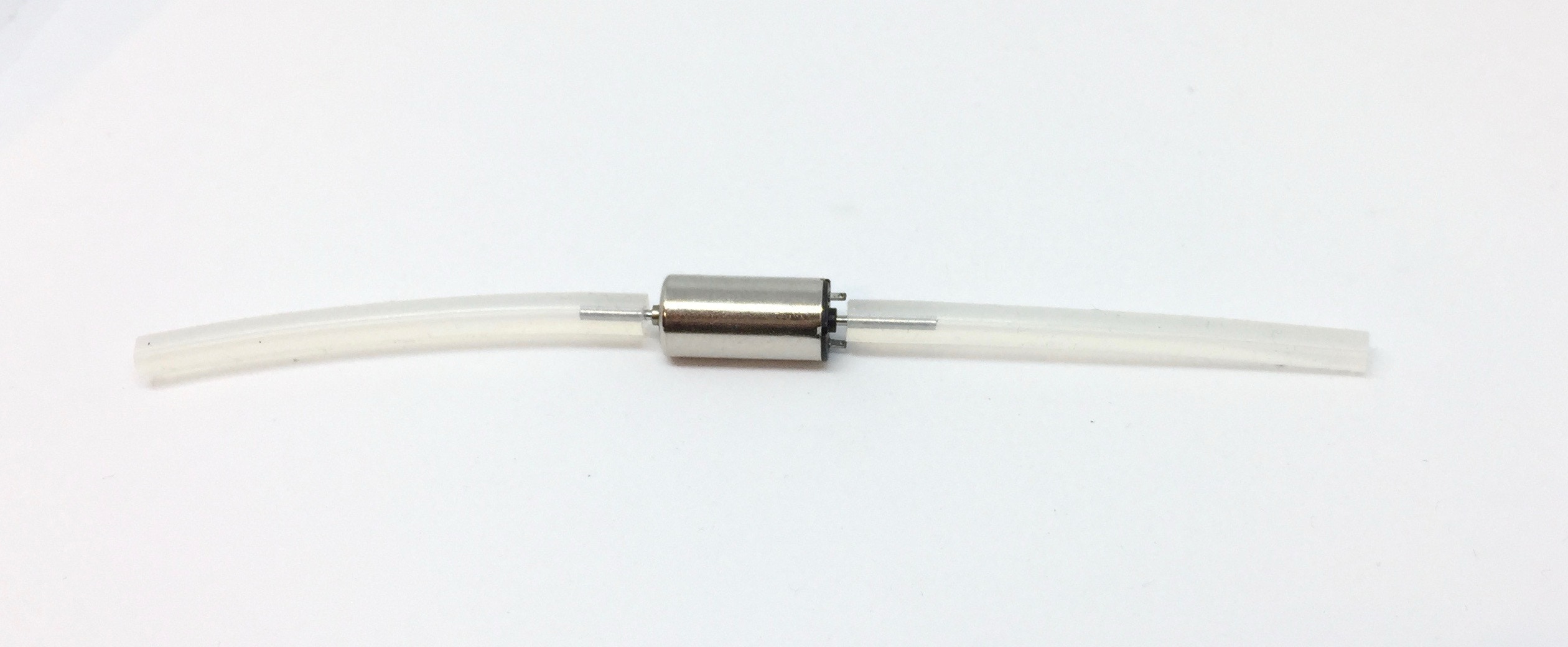

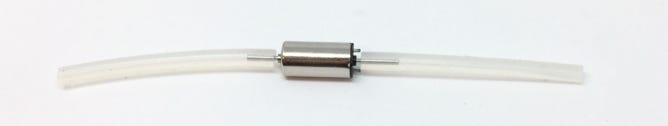

Application suggestion for use as drive shaft.

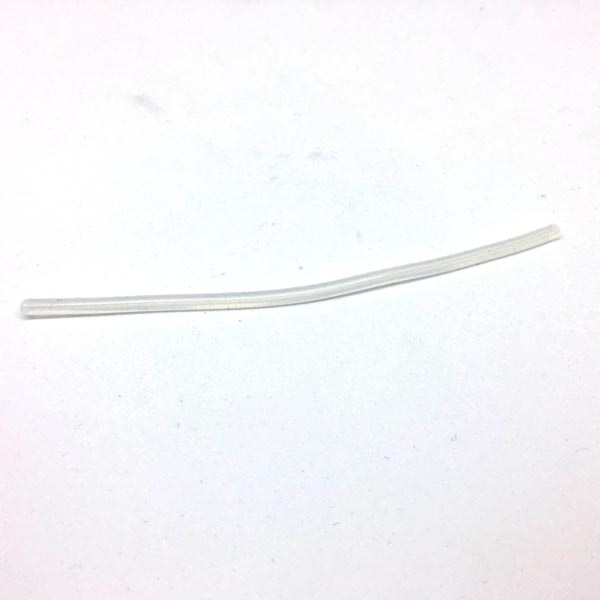

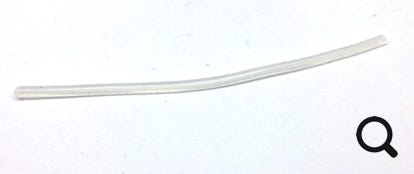

SIL03 - Silicon tube Ø 3 mm, length 10 cm

Outer diameter: 3mm, inner diameter 1 mm

(Silicone tube only, no motor included)

Video voor het vergelijken van de siliconen kardan

Video to compare the silicon drive shafts

Gears

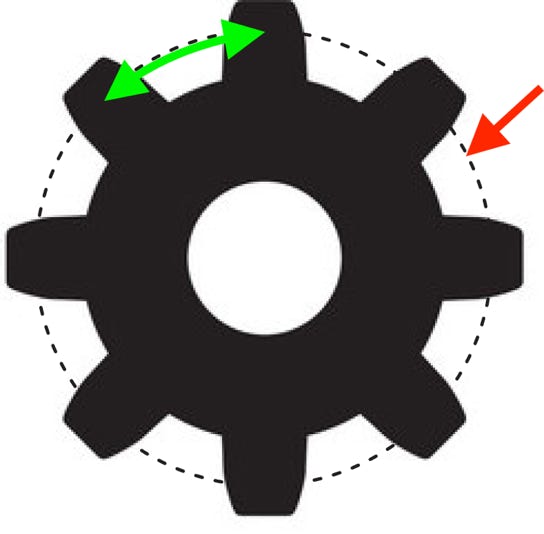

M0.3, M0.4?? What’s a MODULE?

Simply put: the distance between two teeth. Read more HERE. , including a comprehensive list of all the Modules, to find your Module.

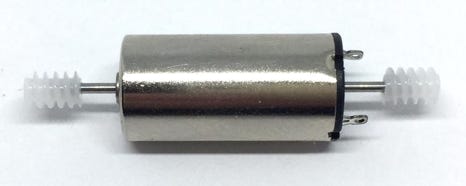

All plastic worms for use with Tramfabriek motors have a tight fit on the motor shaft and don’t need to be glued.

M0.3

TFWOR1

Worm for 6 x 15 mm motor

Module: M0.3

Outer diameter: 3.45 mm

Inner diameter: 0.8 mm (motor shaft size)

Length: 5 mm

TFWOR9

Worm for 0716, 0816, 1015, 1020 motor

Module: M0.3

Outer diameter: 3.5 mm

Inner diameter: 1 mm (motor shaft size)

Length: 5 mm

TFWOR3

Worm for 0716, 0816, 1015, 1020 motor

Module: M0.3

Outer diameter: 4.2 mm

Inner diameter: 1 mm (motor shaft size)

Length: 6 mm

TFWOR7

Worm for brass shaft adapter 1.5 mm

Module: M0.3

Outer diameter: 3.45 mm

Inner diameter: 1.5 mm

Length: 5 mm

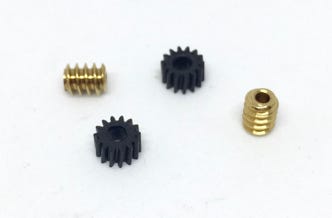

TENSH - Tenshodo gears (set)

Original TENSHODO gears. To replace broken gears in your Tenshodo SPUD or to use in your own project.

Includes: 2 x brass worm, 2 x plastic (acetal) worm gear.

Reduction 14:1.

Module: M0.3

Pitch: 0.94248 mm

Distance gear to worm centres: 3.75 mm

Plastic worm gear:

Inner diameter: 2 mm

Outer diameter: 4.7 mm

Number of teeth: 14

Brass worm:

Inner diameter: 1.5 mm

Outer diameter: 3.5

Length: 4.5 mm

M0.4

TFWOR4

Worm for 6 x 15 mm motor

Module: M0.4

Outer diameter: 5 mm

Inner diameter: 0.8 mm (motor shaft size)

Length: 5 mm

TFWOR5

Worm for 0716, 0816, 1015, 1020 motor

Module: M0.4

Outer diameter: 5 mm

Inner diameter: 1 mm (motor shaft size)

Length: 5 mm

TFWOR10

Worm for 0716, 0816, 1015, 1020 motor

Module: M0.4

Outer diameter: 4 mm

Inner diameter: 1 mm (motor shaft size)

Length: 5 mm

TFWOR11

Worm for 1.5mm motor shaft or adapter

Module: M0.4

Outer diameter: 4 mm

Inner diameter: 1.5 mm (motor shaft size)

Length: 5 mm

Ultra thin wire

BLUE

YELLOW

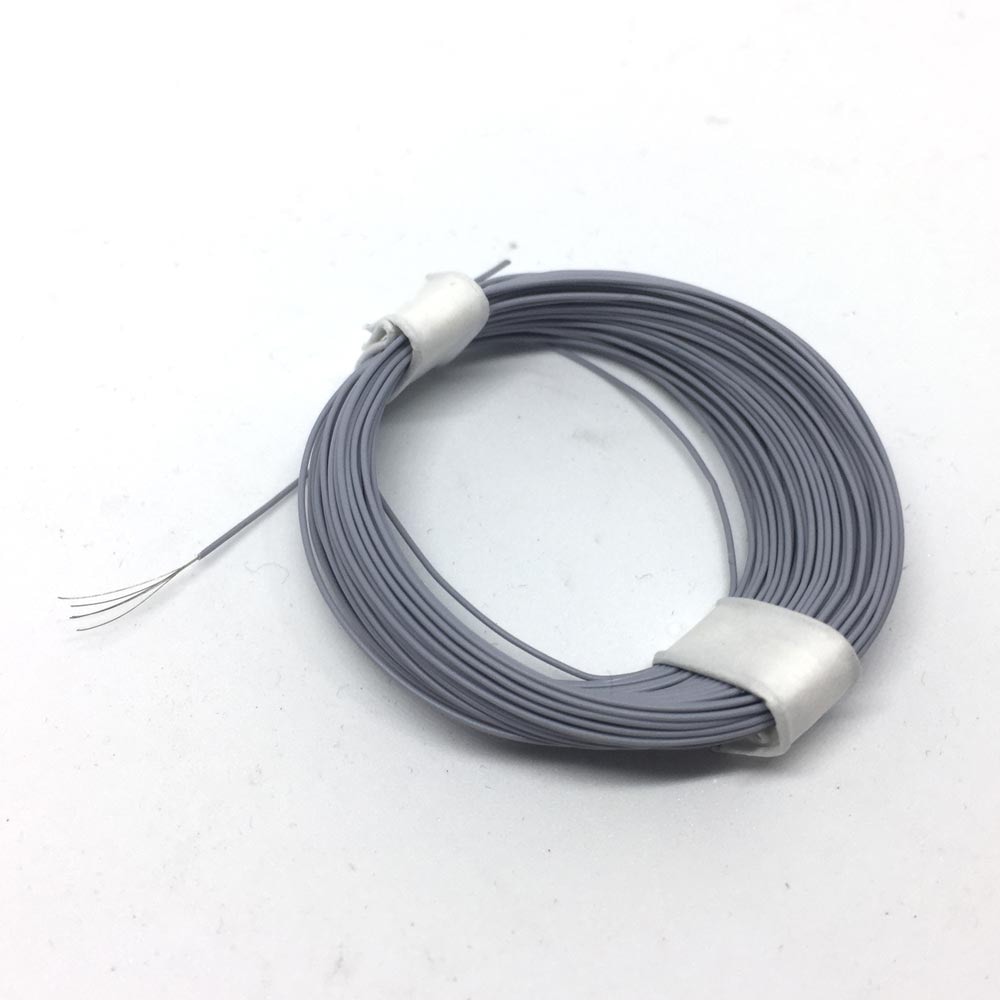

GREY

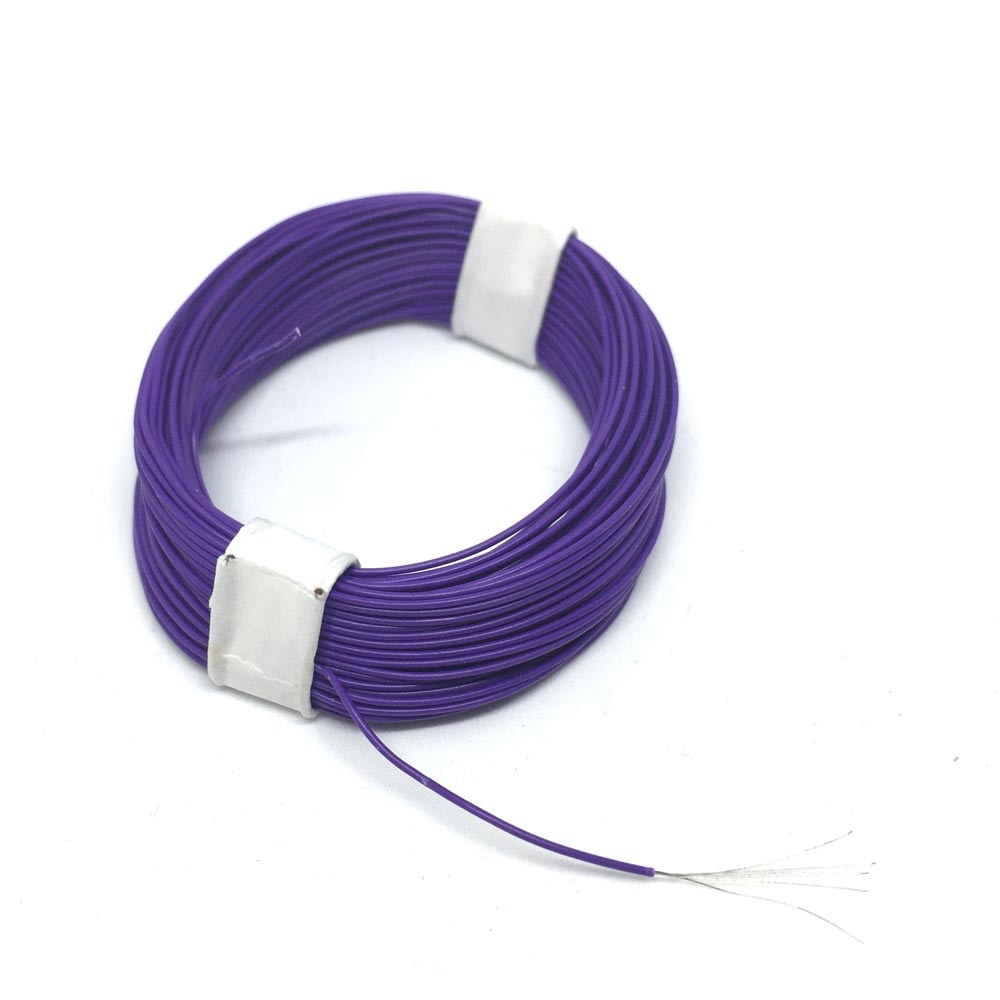

PURPLE

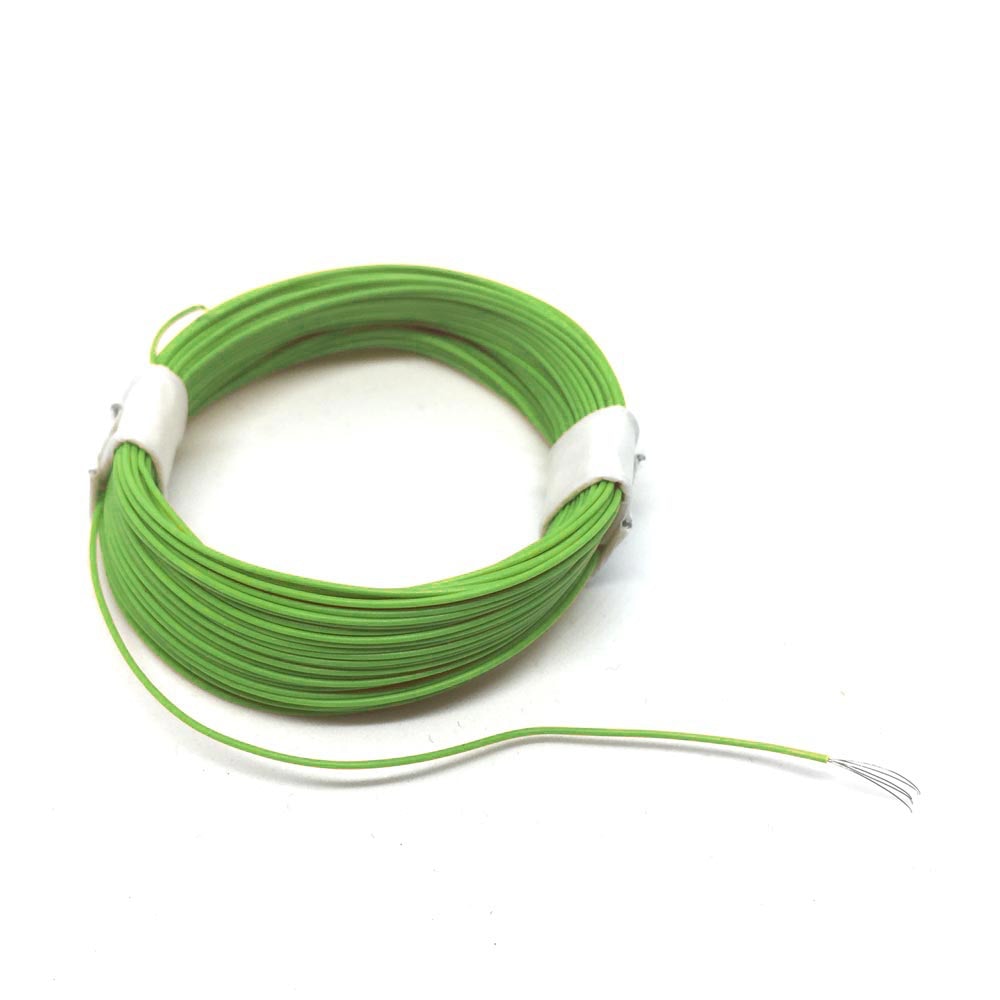

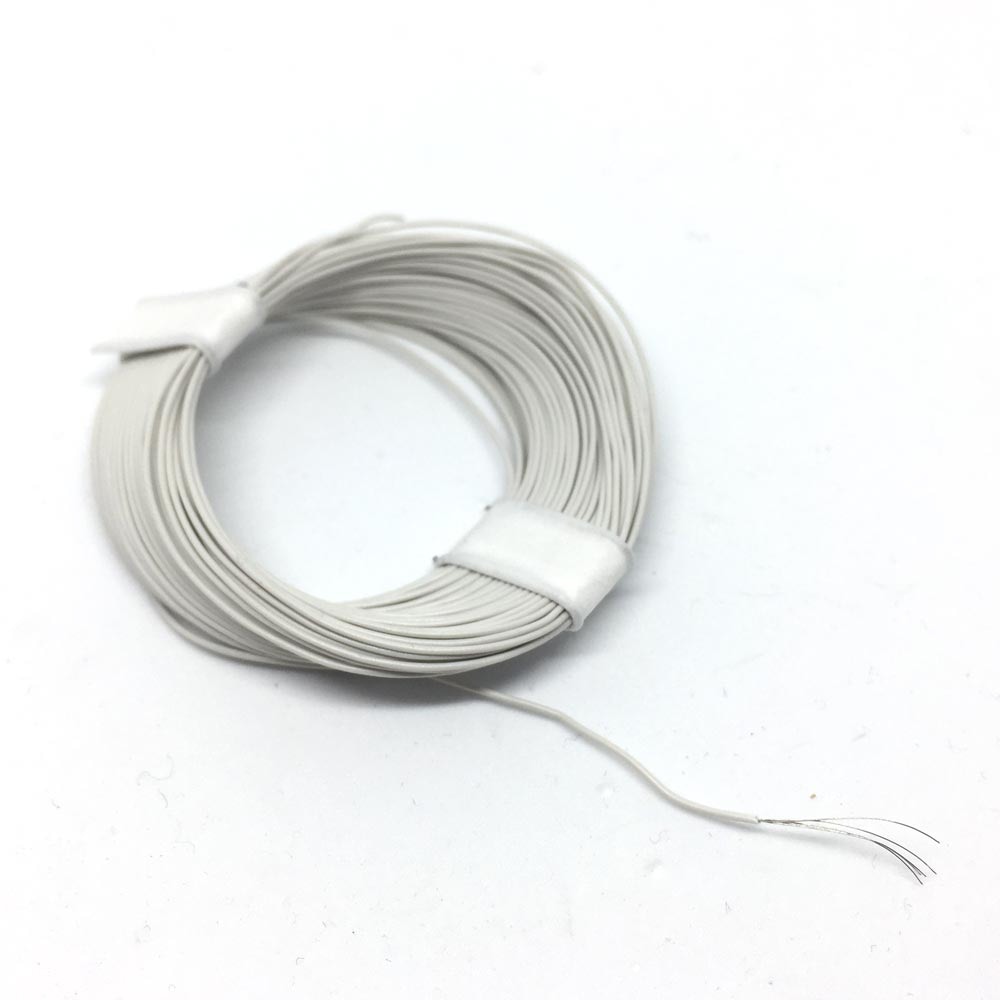

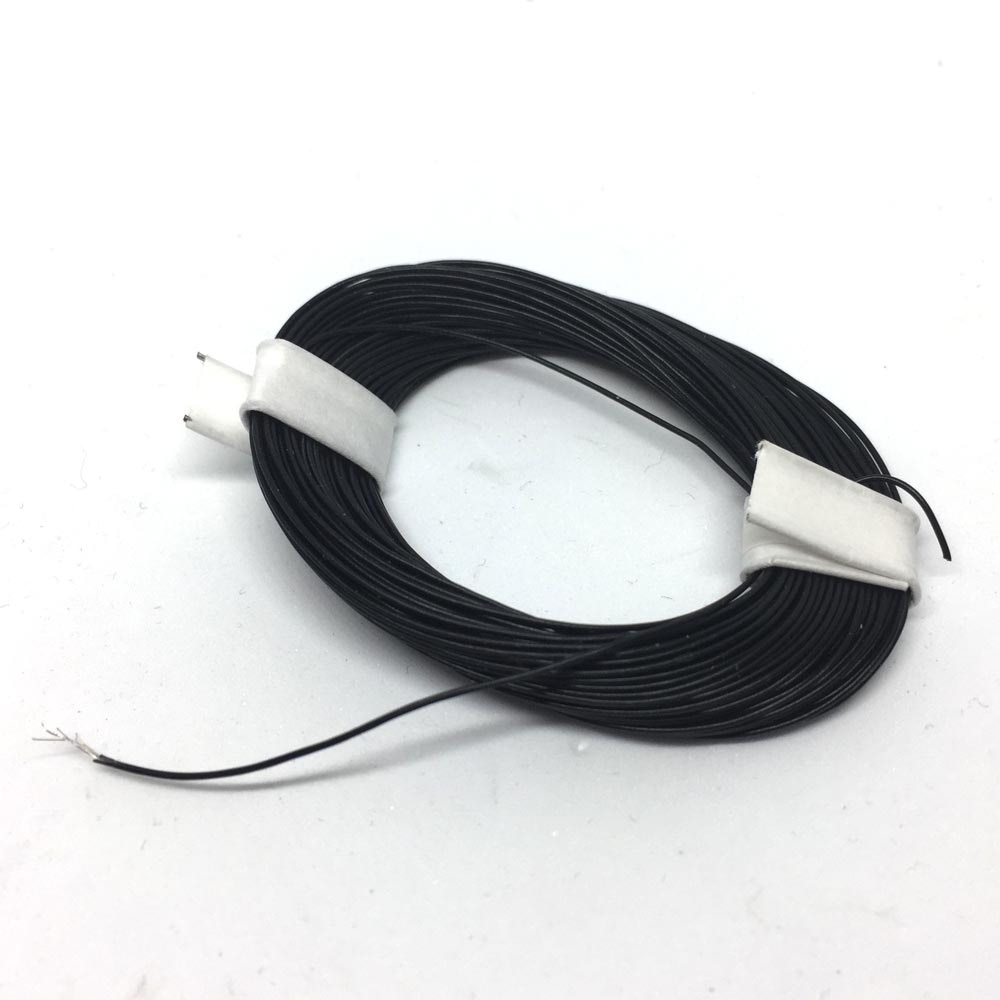

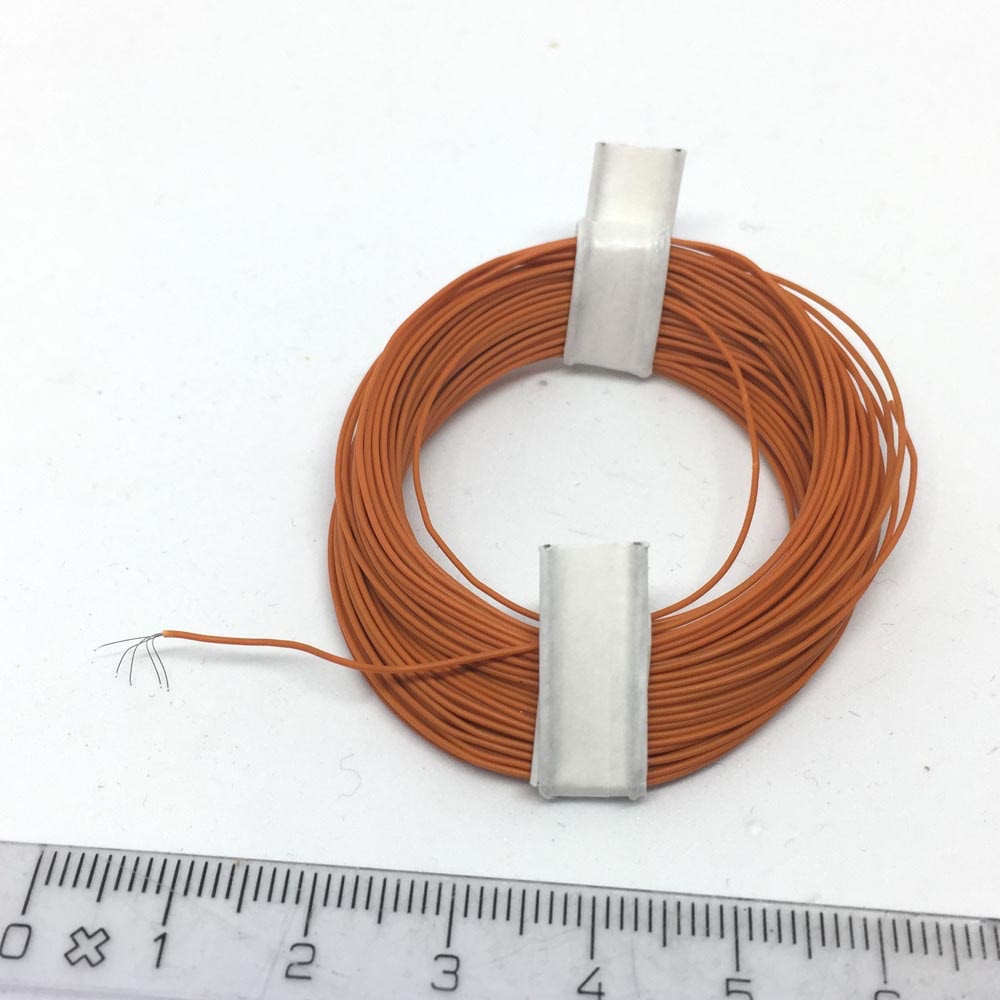

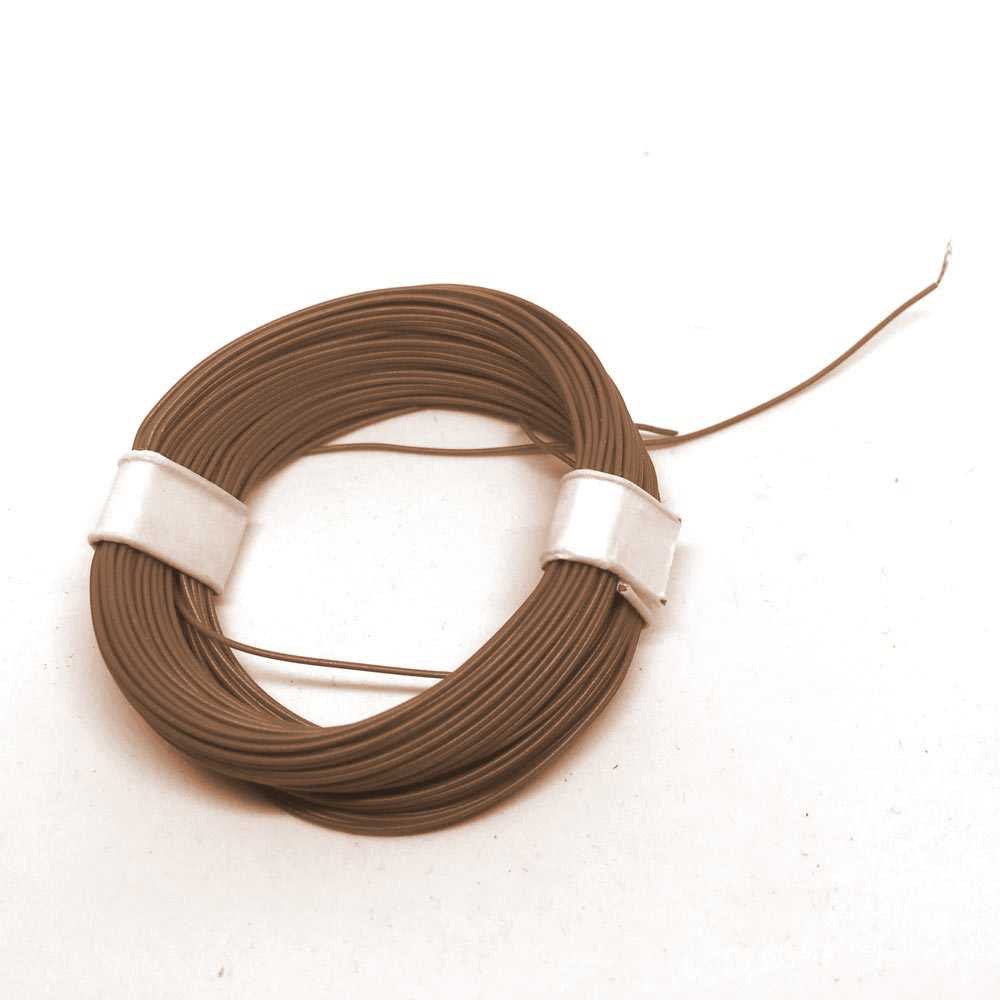

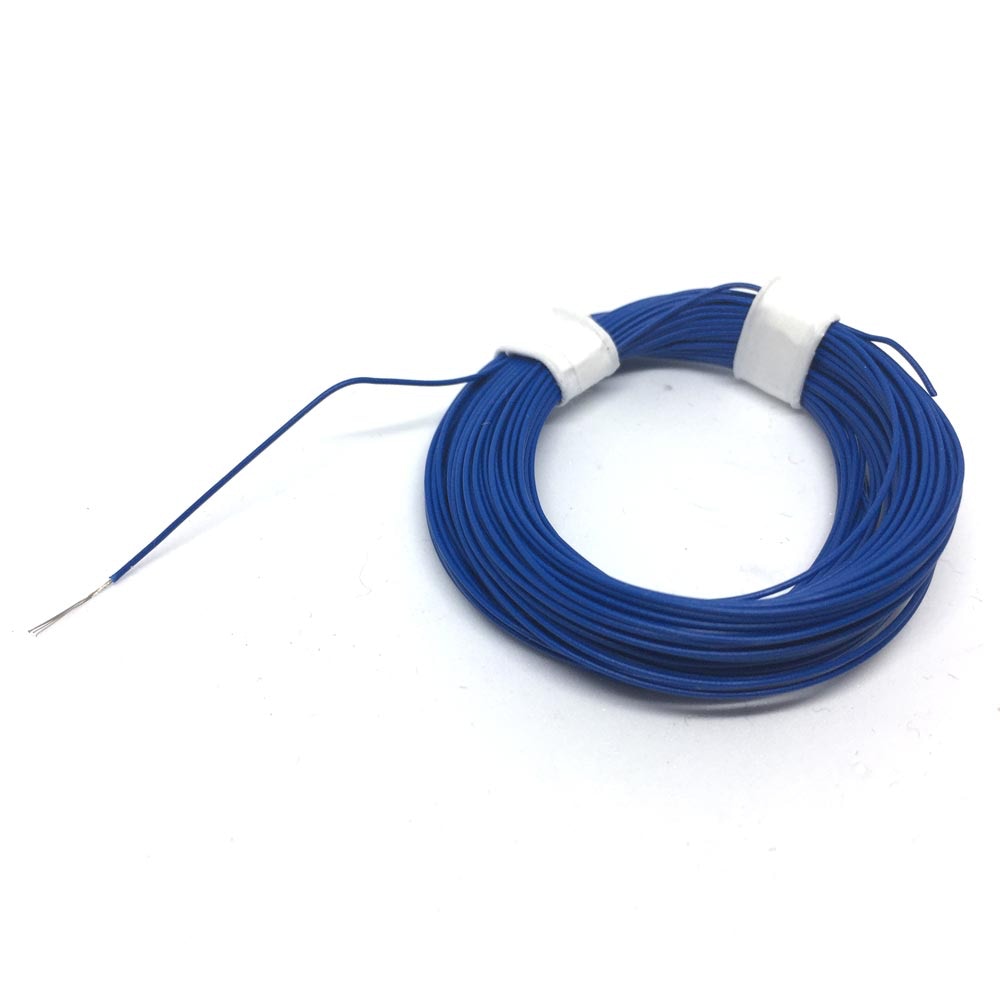

Ultra thin wire - 10 meters

Ultra thin wire, extremely flexible. The best wire available for fitting decoders, light etc in model trains.


Size: 0.008 mm2

Core diameter: 0.10 mm

Outer diameter: 0.55 mm

Rated: 0,5 Ampere @ 500V max

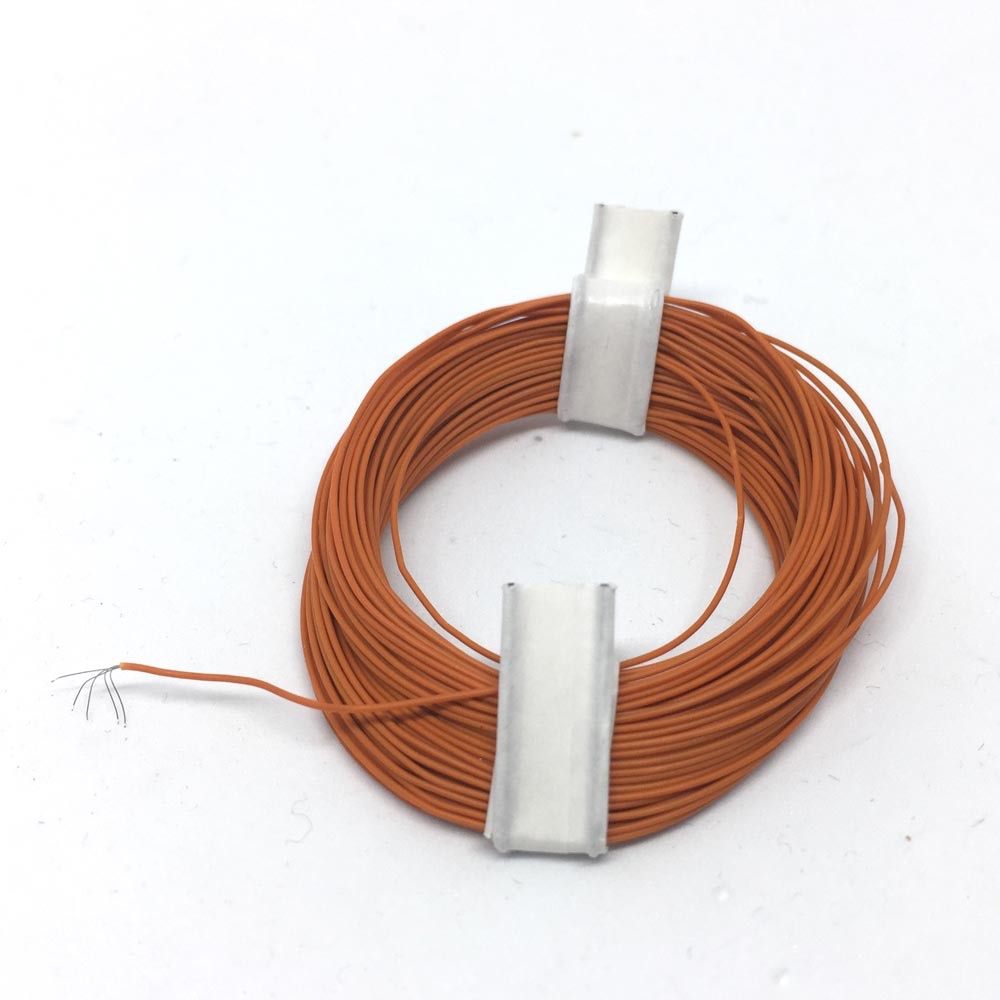

ORANGE

RED

BLACK

WHITE

GREEN

BROWN

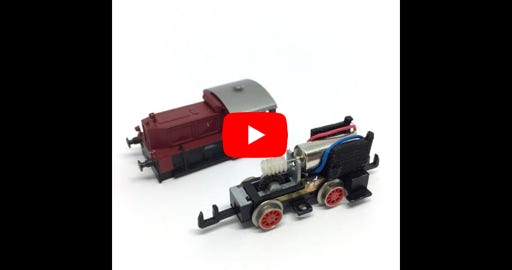

Left: See the power of the 8 x 16 motor in action in the video

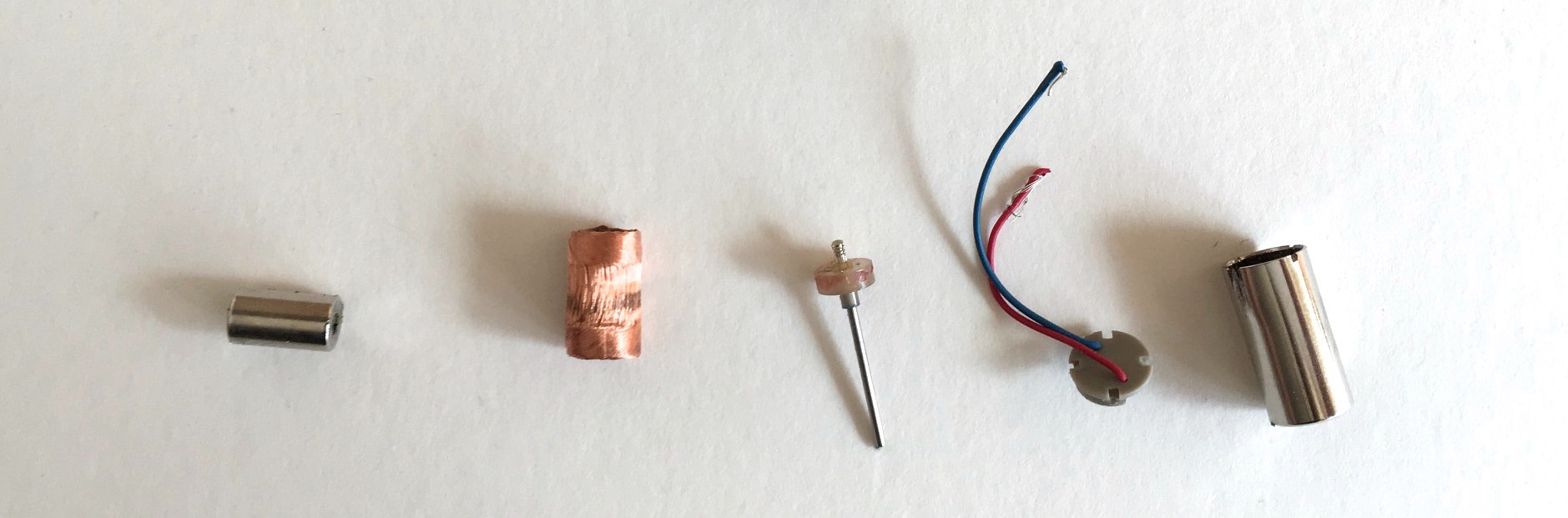

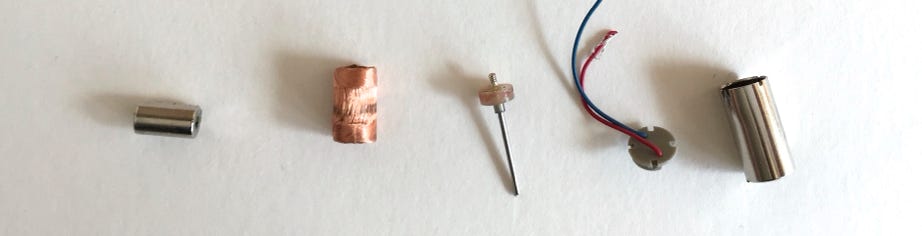

Below: the parts of a motor

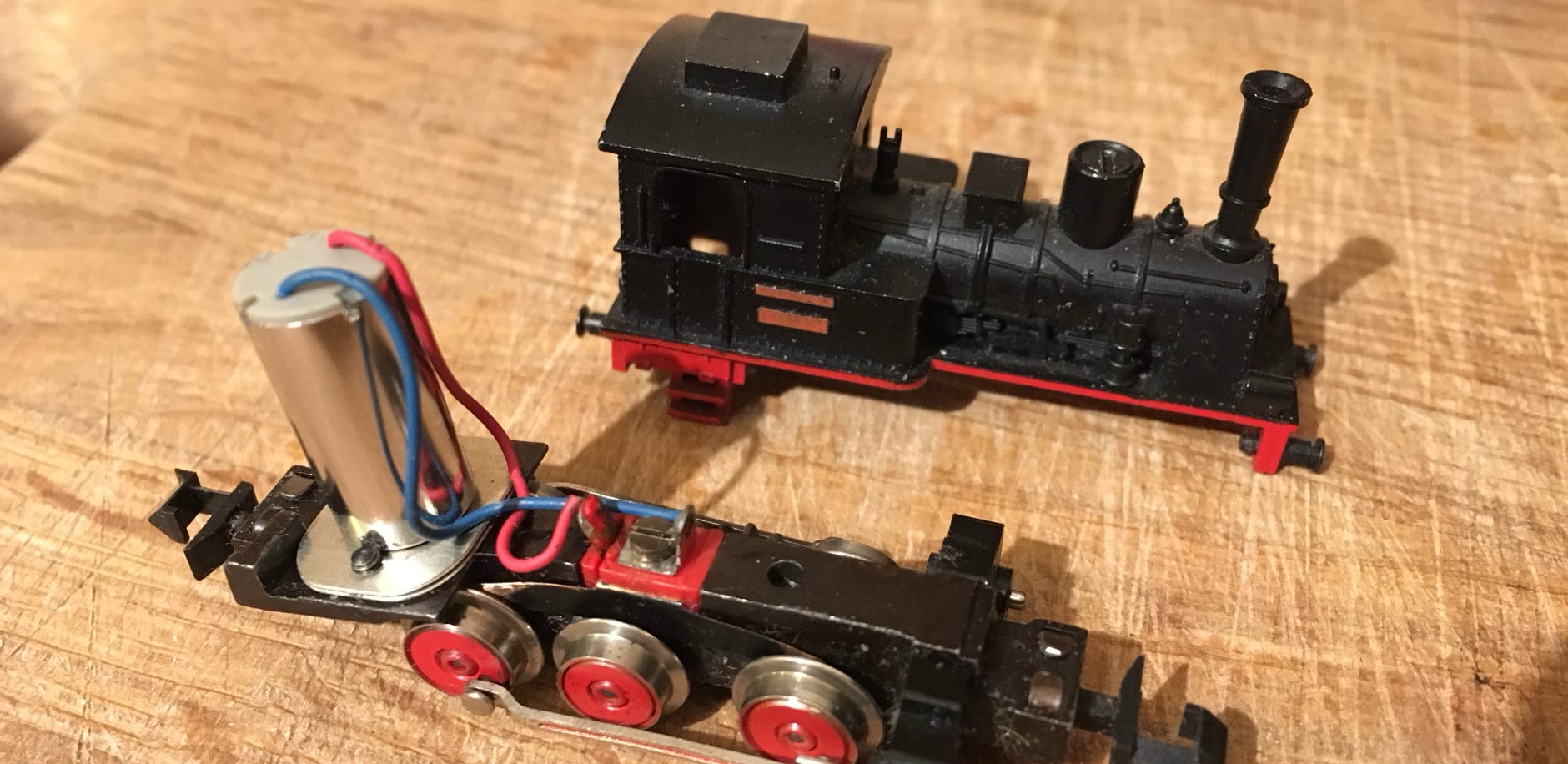

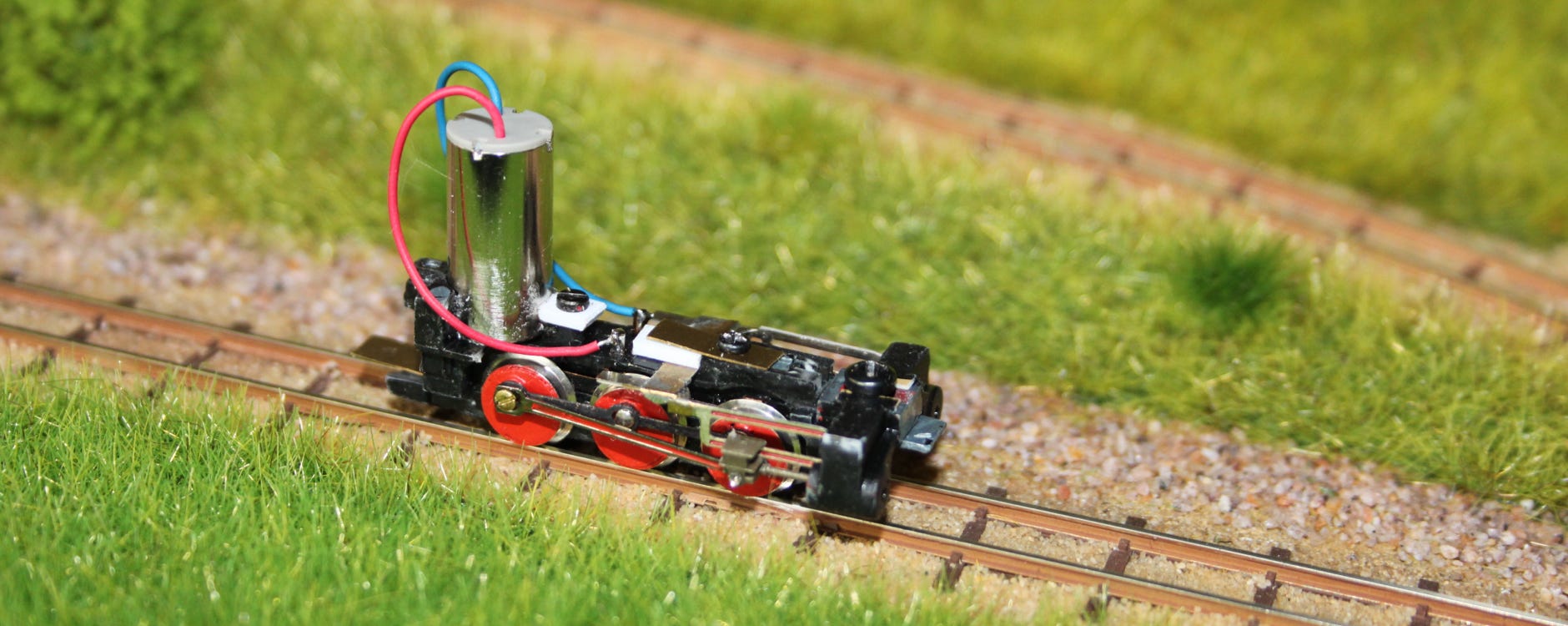

De 0816S motor gebruikt als verbetering voor een Märklin Z drive (in dit geval bijv BR 24 of BR 74)


The 0816S as replacement motor on a Märklin Z drive (fx BR 24 or BR 74)

Photo + model: Siem de Jong

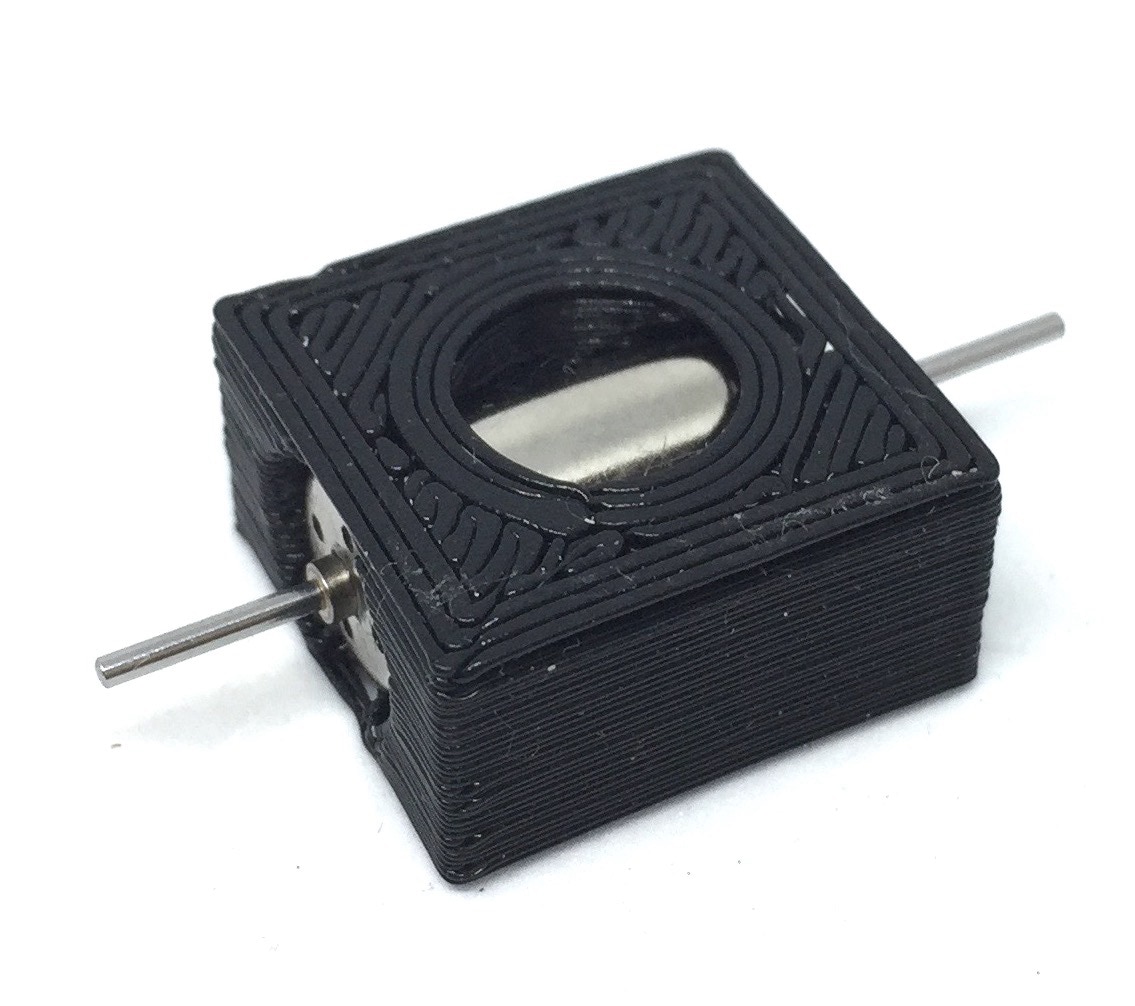

Minitrix T3 with custom made brackets.

Click here for digital decoder settings for coreless motor
