KASTENLOK INDEX

The 1020D motor

BUY NOW

In 2017, the Tramfabriek made model train fans all over the world very happy with the release of a very affordable 8 x 16 mm 12V coreless motor (0816S). Seeing someone bringing this to the market made customers ask for more. So a similar motor with two shafts, as well as  7 x 16 mm and 6 x 15 mm motor followed. All of them small, 12V miracle workers in many model trains in the smaller scales.

Introducing the tiny 6 x 15 mm 12V coreless motor - Only from the Tramfabriek

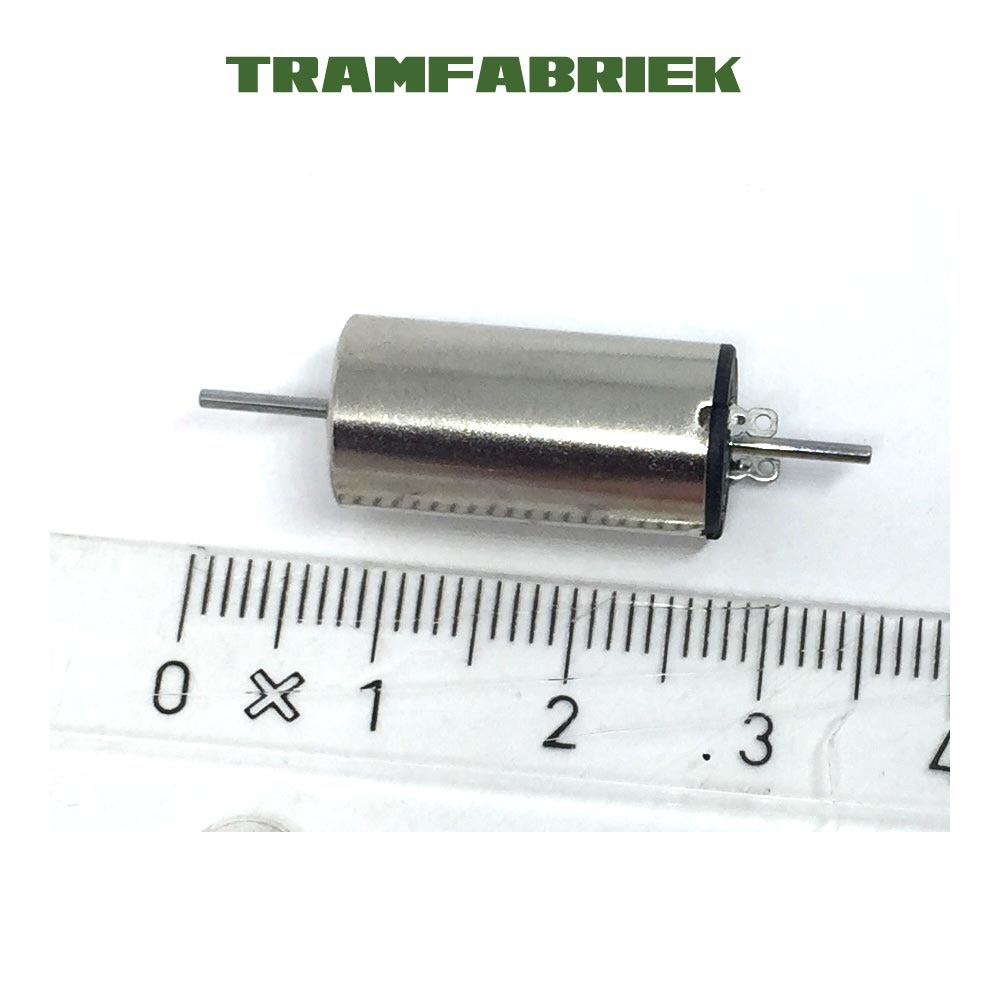

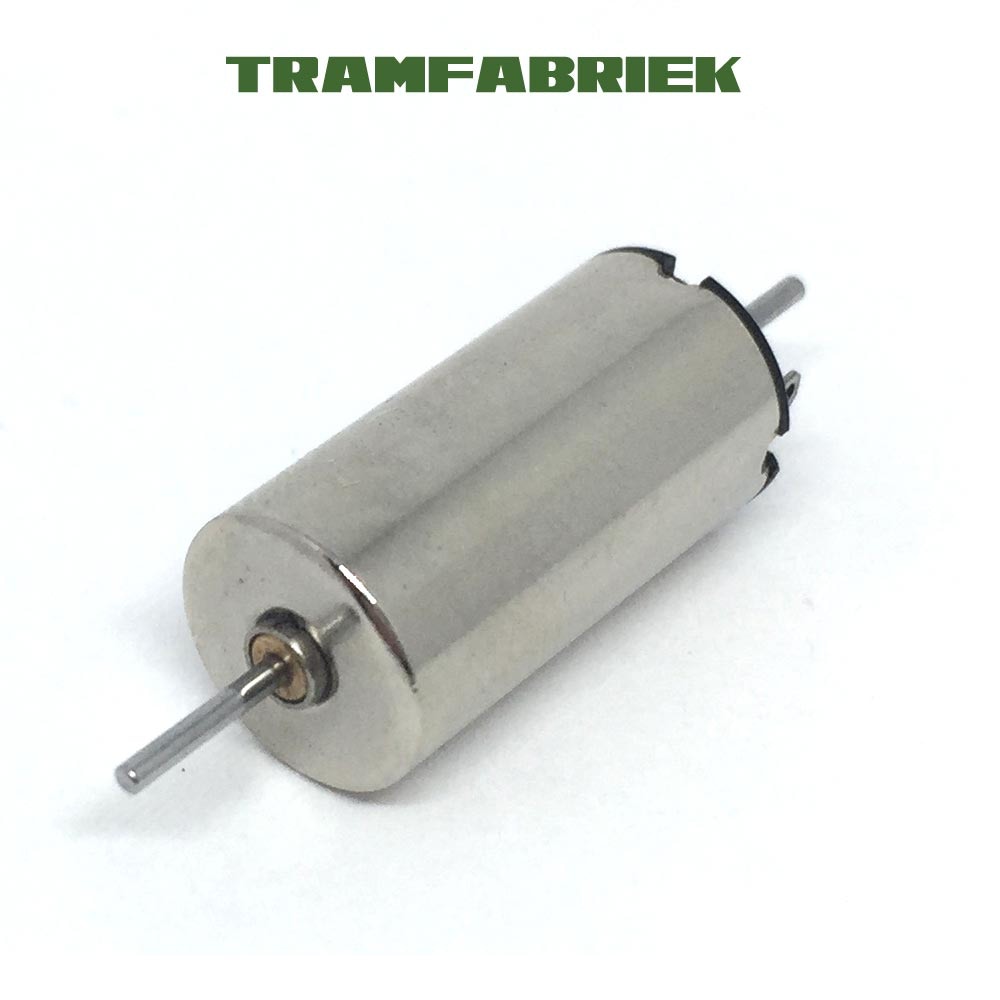

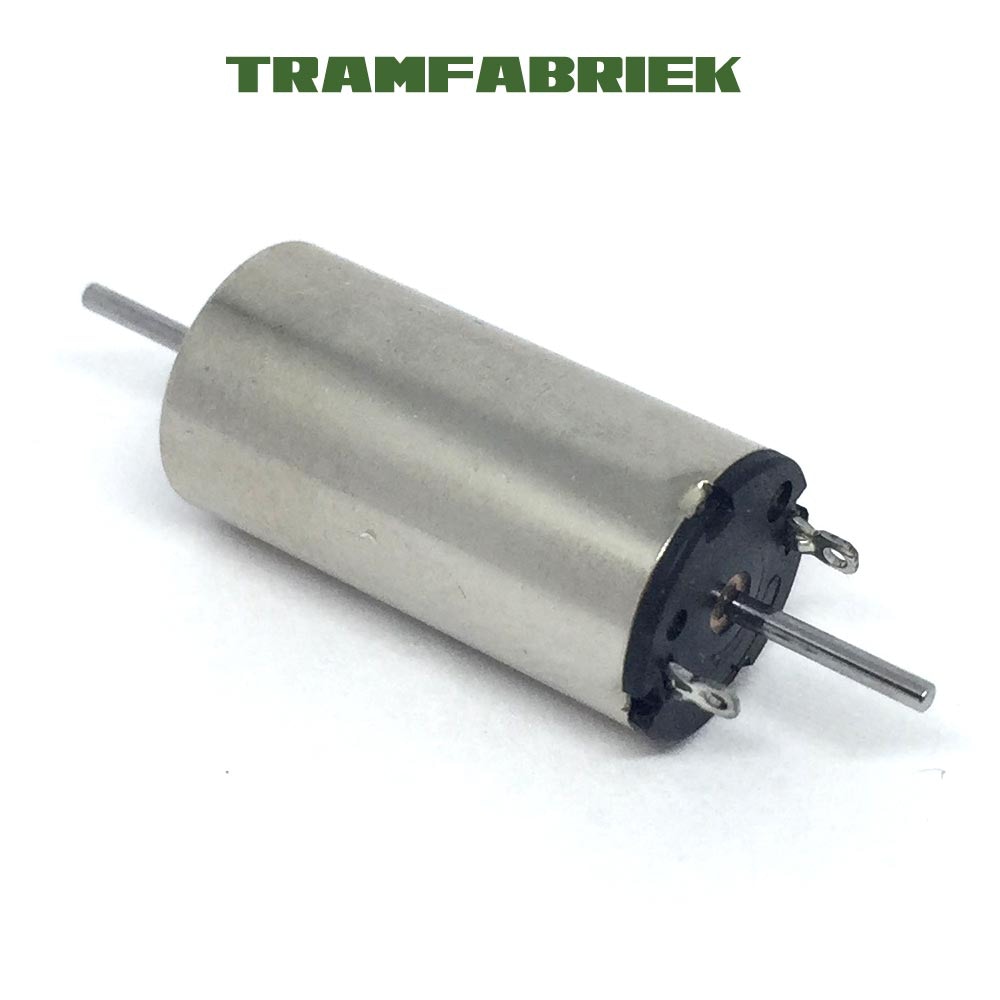

This great line up of motors now has little big brother that is even more powerful. Measuring  a little larger, 10 x 20 mm, but twice the torque as the already impressive 8 x 16 motor. This new motor  creates possibilities for people who have a more space in their model to give it a  motor that is more powerful, silent and gives real crawling speeds to their train models. What’s not to like?

Technical specifications:

Outer diameter: 10.0 mm

Length: 19.90 mm

Voltage: 12V

Shaft diameter: 1.0 mm

Shaft length non-contacts side: 7.0 mm

Shaft length contacts side: 7.4 mm

No load RPM at 12V: 14,000

Rated current: 60 mA

Stall torque: 32 g.cm

Configure your own ideal motor

Choose from the options below to pick the parts you need to make the best solution for you. If you need an alternative combination, please contact me to communicate about the possibilities.

Special deals

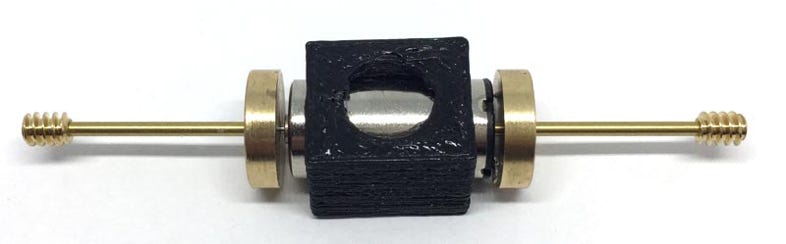

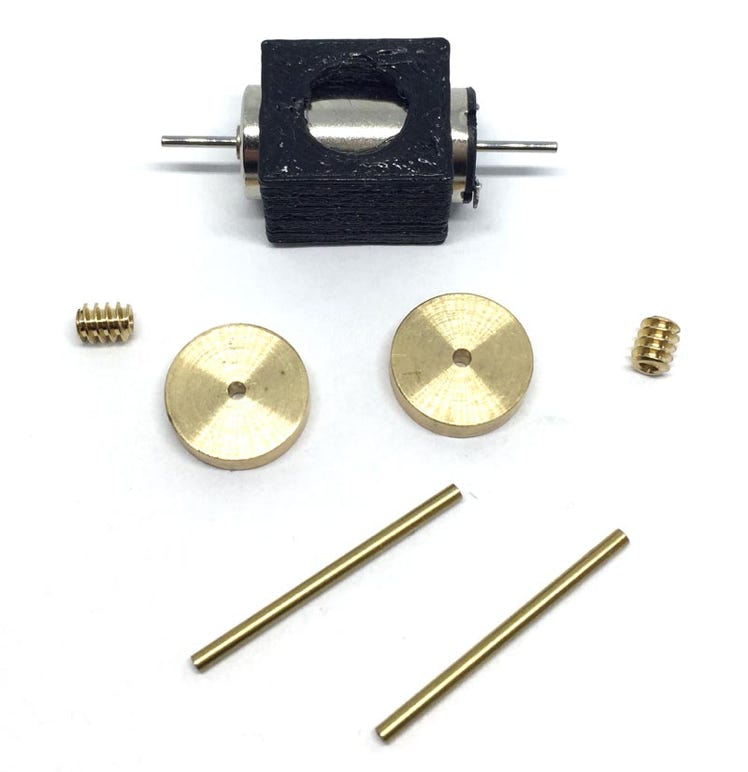

All adapters are brass and have an outer diameter of 1.5 mm.

MORE MOTORS AND PARTS (click)

•
