Welsh Highland 'Bro Madog' coach

OO9

H0e

H0m

H0

This Dundas kit features a plastic body including exterior and interior details, moulded roof, air cylinders, air brake pipes and one-piece plastic bogies complete with metal wheels for OO9/H0e. This kit is a model of the "Bro Madog Eisteddfod" bogie coach built by the Welsh Highland Railway in 1987. Although recently built this coach follows traditional lines with its attractive vertically planked sides.

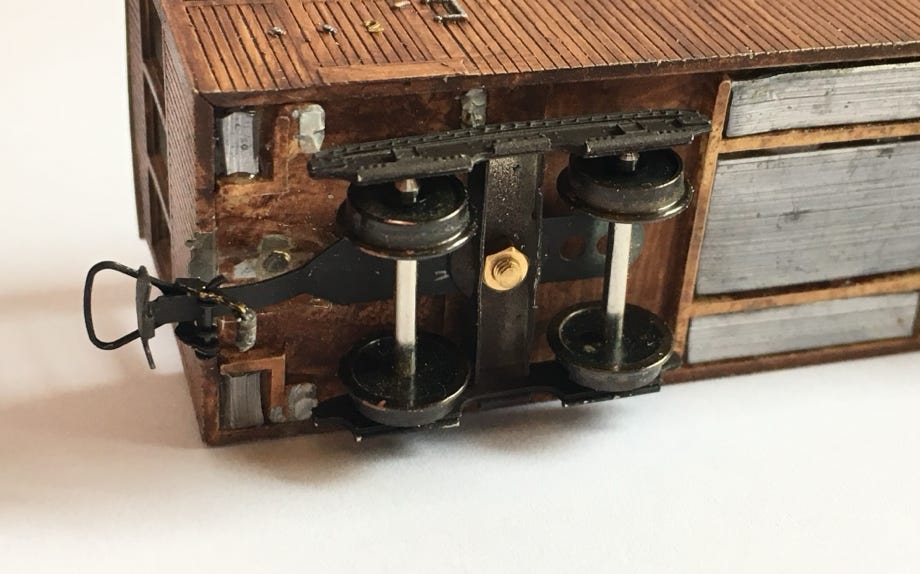

Although in OO9 scale (1:76), it is a perfect companion for the steam tramway locomotives made by the Tramfabriek in 1:87 or any other Dutch tramways. This OO9/H0e kit comes exclusively from the Tramfabriek with Tramfabriek Centre Point couplings. These which give the carriage much better rides through curves and points, as it fixed to the centre point of the bogie and not to the end of the carriage (The kit instructions are advising to use Bemo couplings, but these will have to be fitted to the end of the model. Because these can’t turn, will make derailment common when going through curves).

With the Tramfabriek Métallurgique two bogie kit you can transform this OO9/H0e kit to a more mainland-Europe tram style carriage. Available for OO9/H0e, H0m and H0.

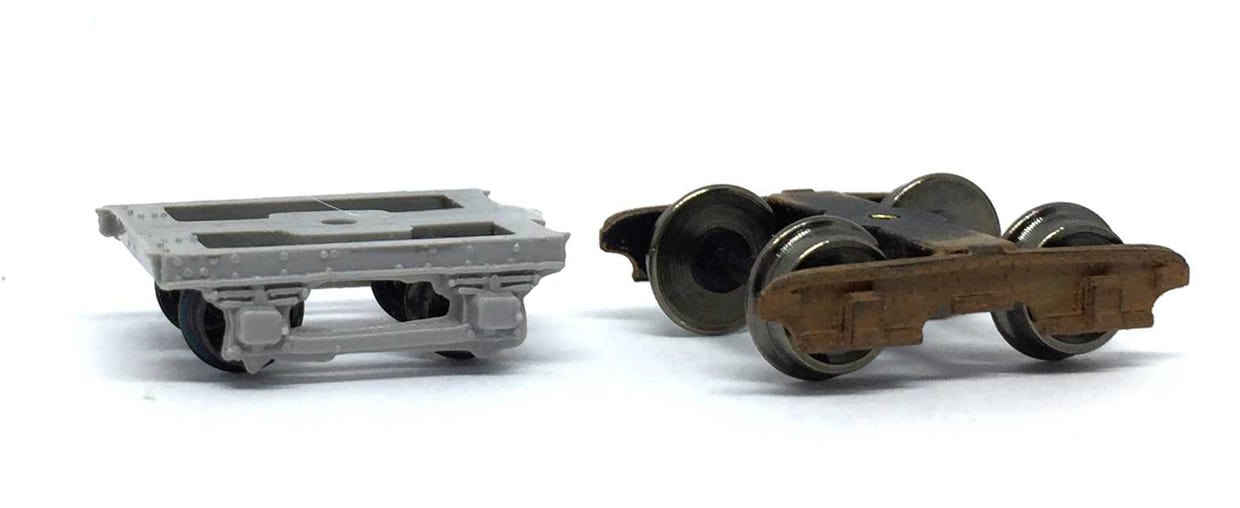

Default bogie of kit (009/H0e only)

Tramfabriek Métallurgique bogie, replaces default bogie of kit

(009/H0e, H0m and H0)

Available for 009/H0e (9mm gauge), H0m (12 mm gauge) and H0 (16.5 mm gauge)


Contents of the standard kit:

- Kit of the DM40 carriage with 009/H0e 2x bogies

- 4 axles with 5.2 mm wheels

- Tramfabriek Centre Point Couplings


Contents of the Métallurgique kit:

- Kit of the DM40 carriage with 2x selected Métallurgique bogies and wheels

- 4 axles with 7 mm disc wheels

- Tramfabriek Centre Point Couplings

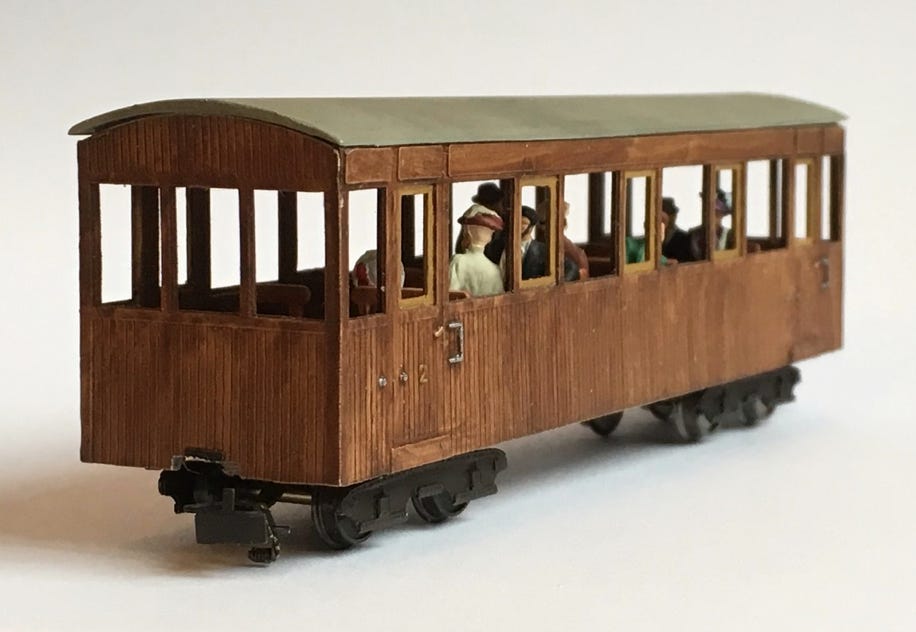

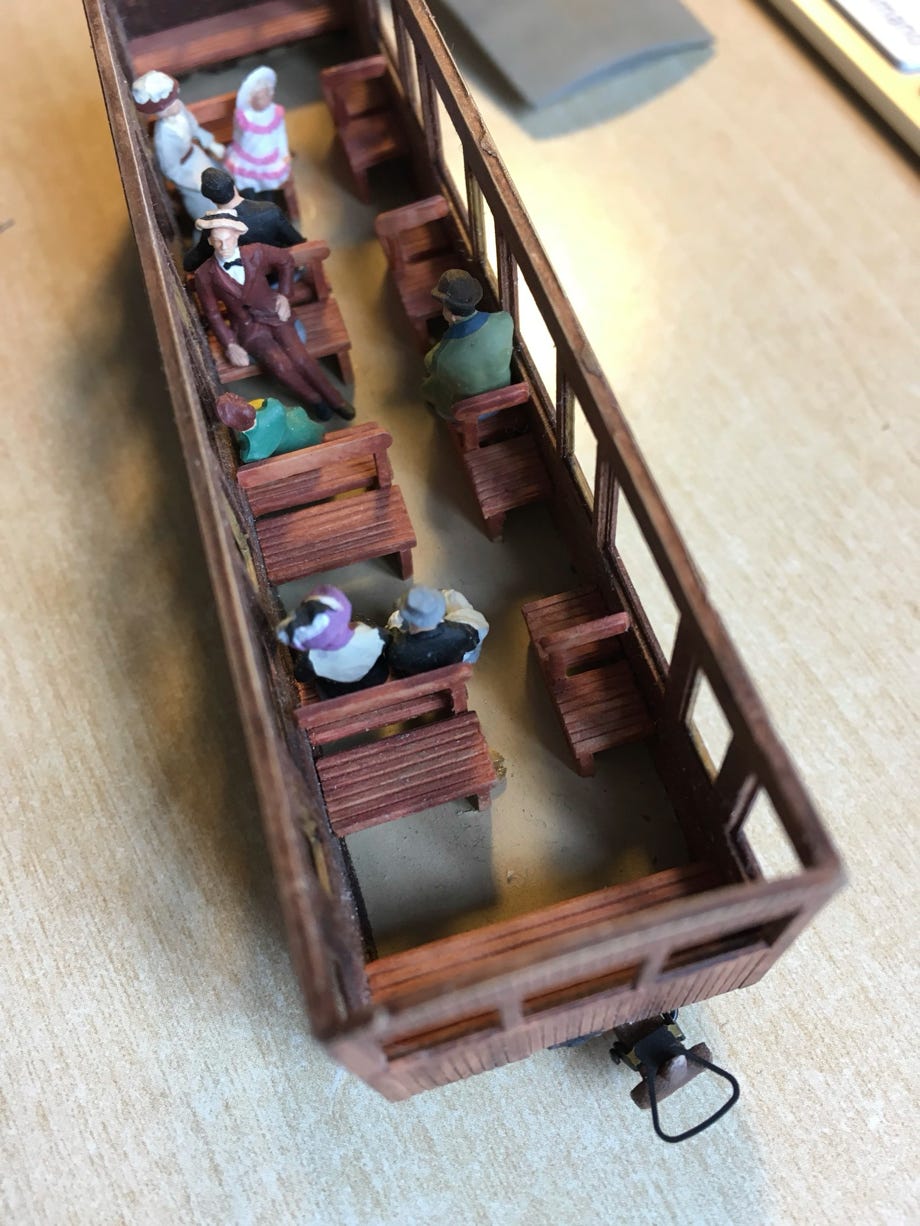

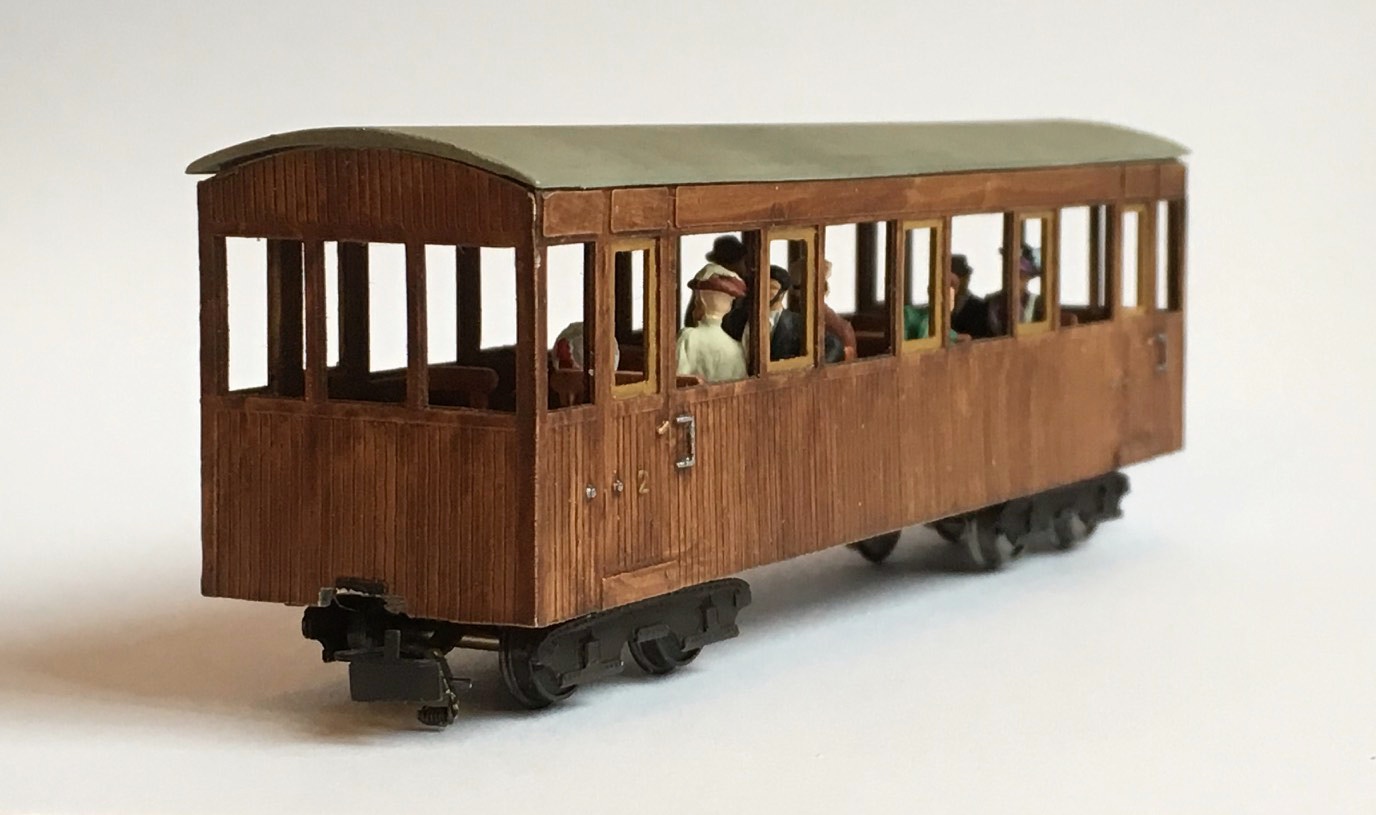

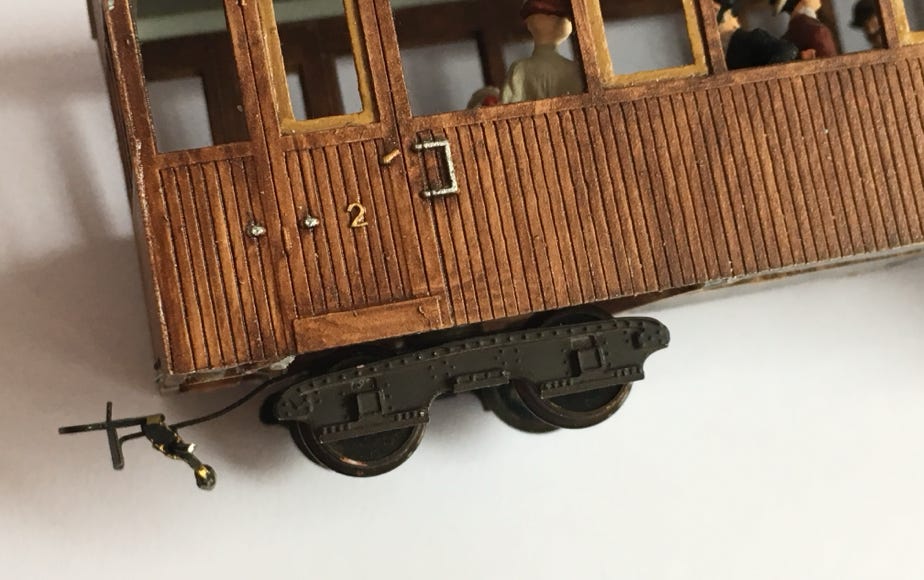

Painting example. Preiser figures not included, but the seats are!

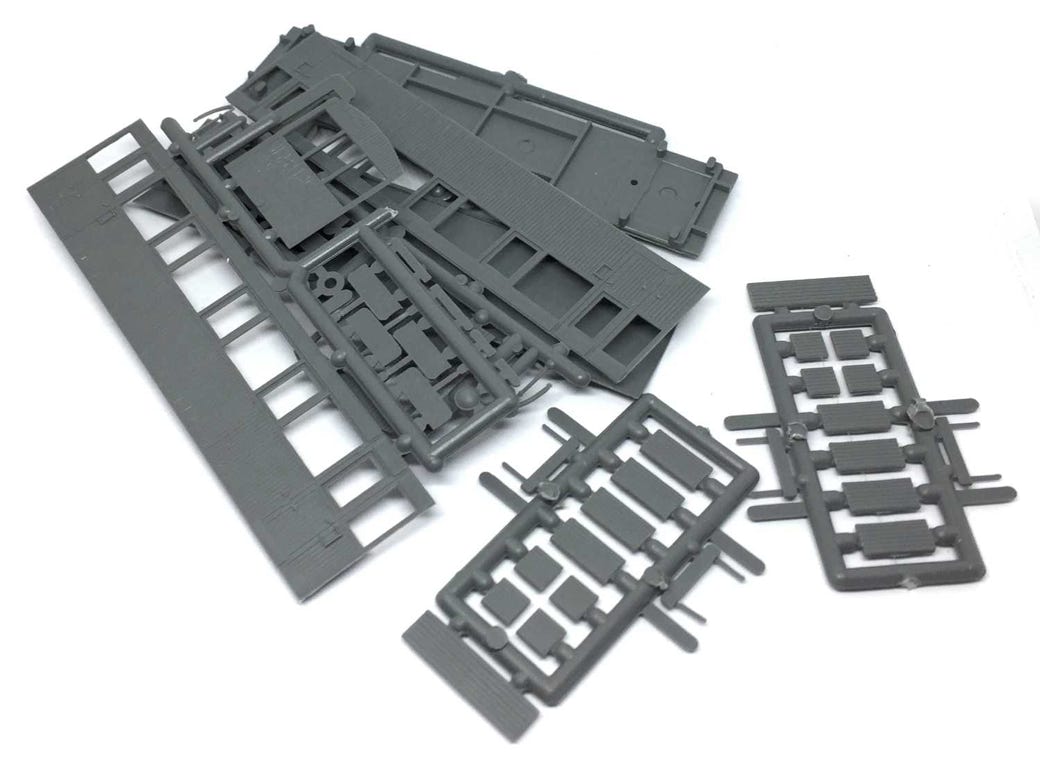

DM40 full kit (bogies not shown)

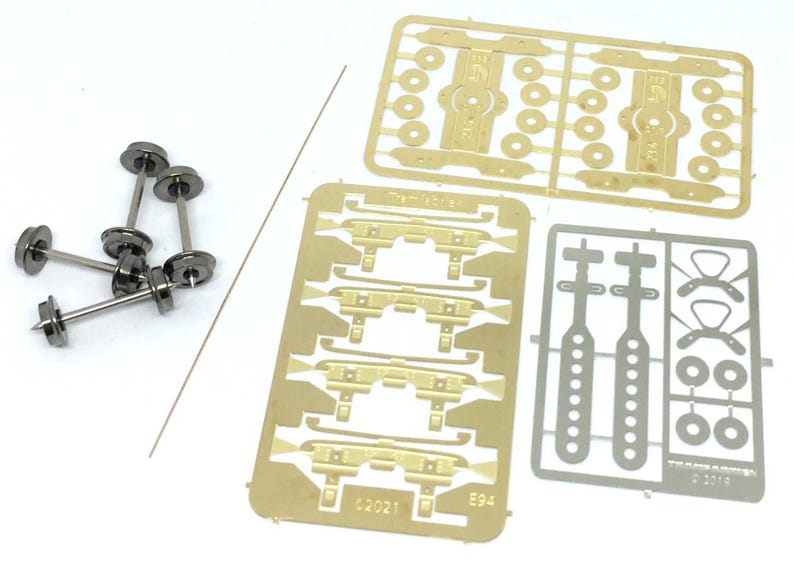

Optional Métallurgique bogies upgrade

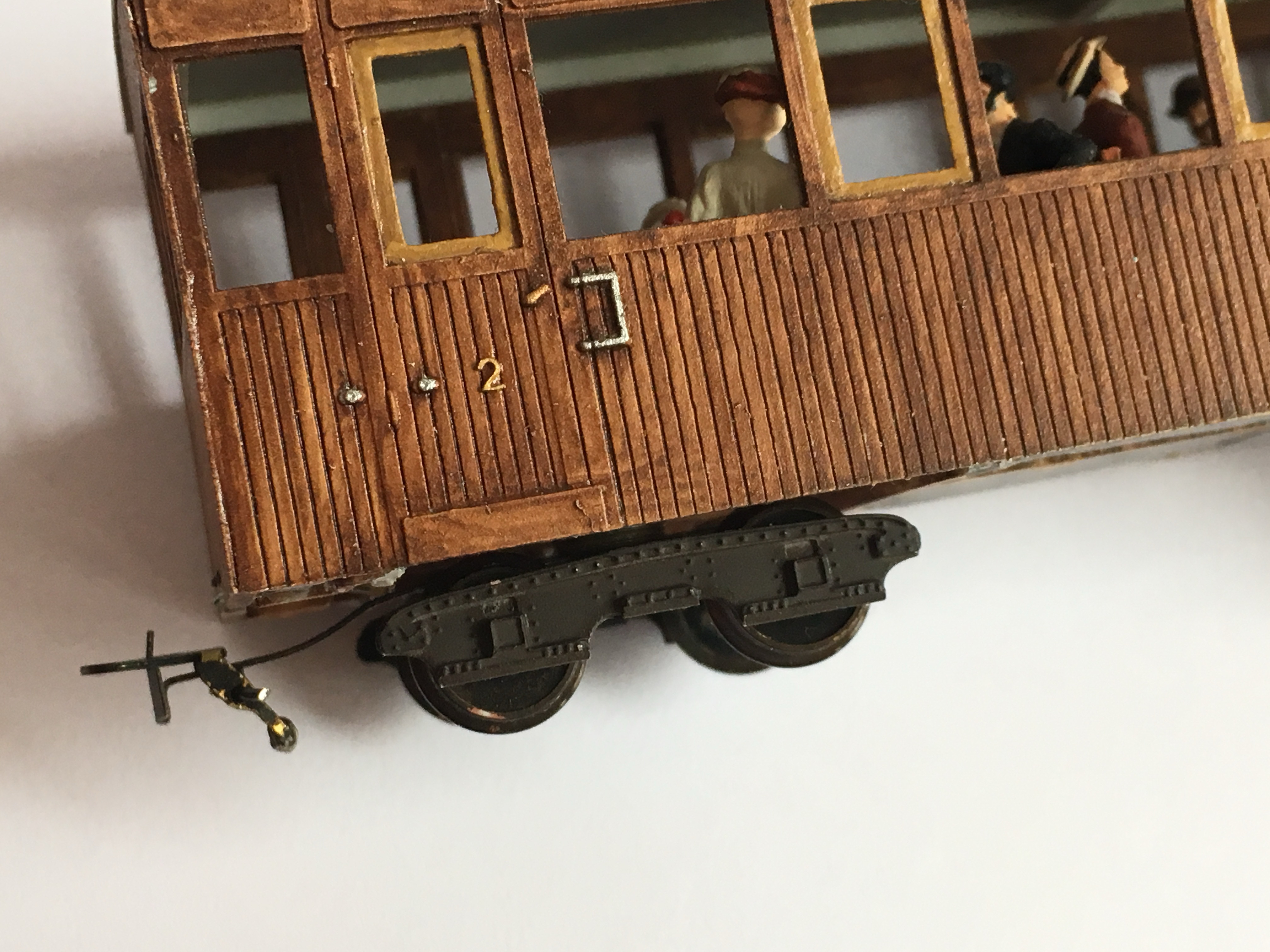

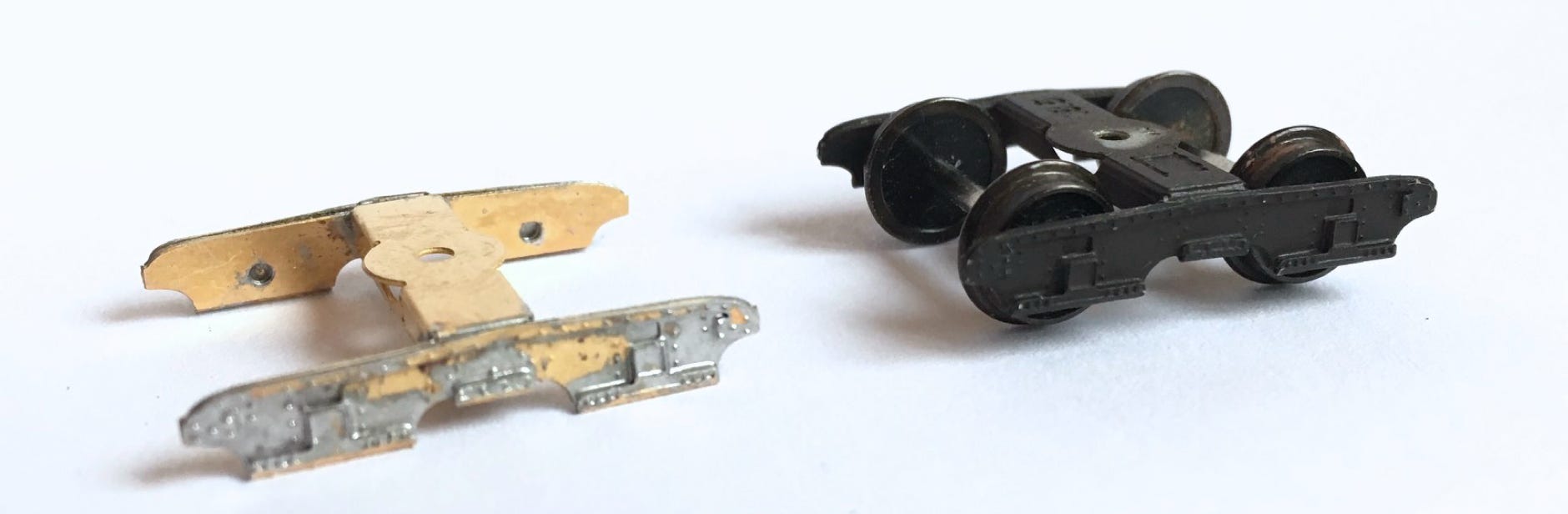

These are the Métallurgique bogies. The standard kit contains (another, lower style) OO9/H0e bogies.

These are the Métallurgique bogies. The standard kit contains (another, lower style) OO9/H0e bogies.

These are the Métallurgique bogies. The standard kit contains (another, lower style) OO9/H0e bogies.

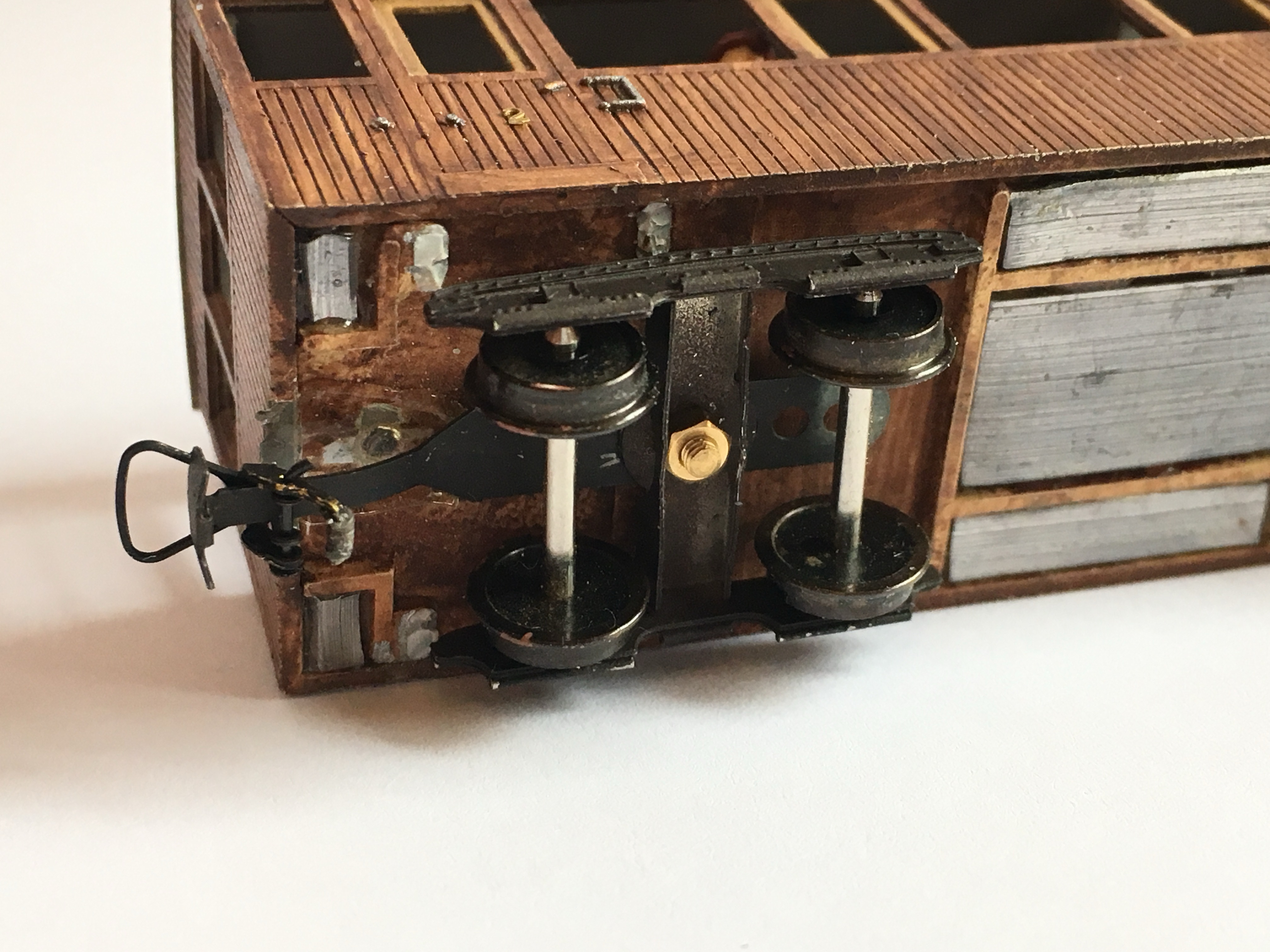

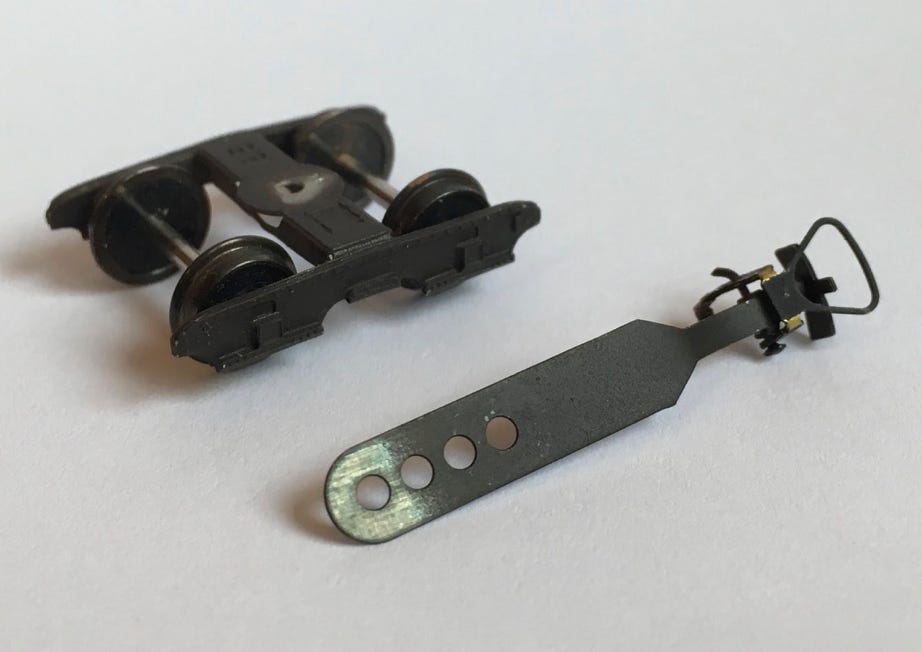

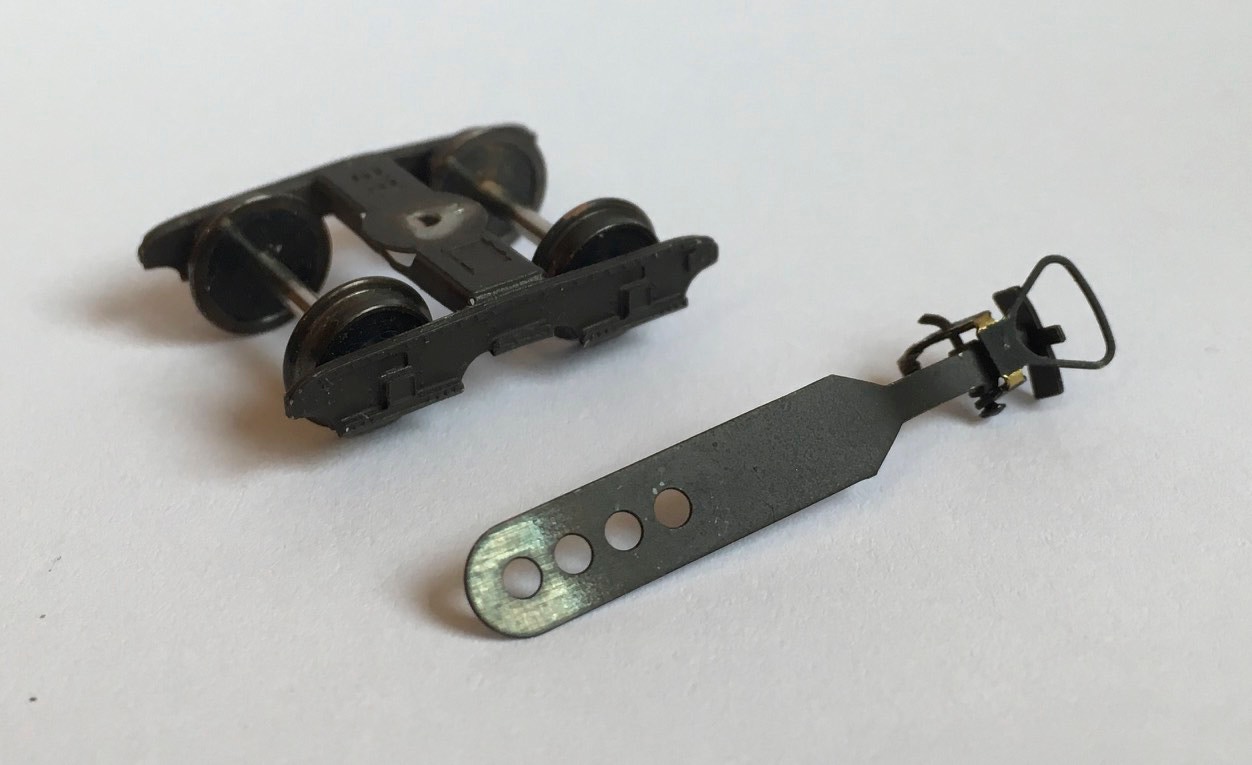

Two Centre Point Couplings come standard with EACH kit.

•
